Technical parameters
1. The processing capacity is as follows: the maximum bar diameter is 25-26mm. If it exceeds this range, a machine tool with a large diameter needs to be selected
2. The travel range is 500mm for the X-axis and 180mm for the Z-axis
3. Spindle parameters, maximum spindle speed 3500-4000rpm, spindle motor power 2.2 KW, spindle nose taper A2-4, support hydraulic chuck size 5-6inch
Accessories:

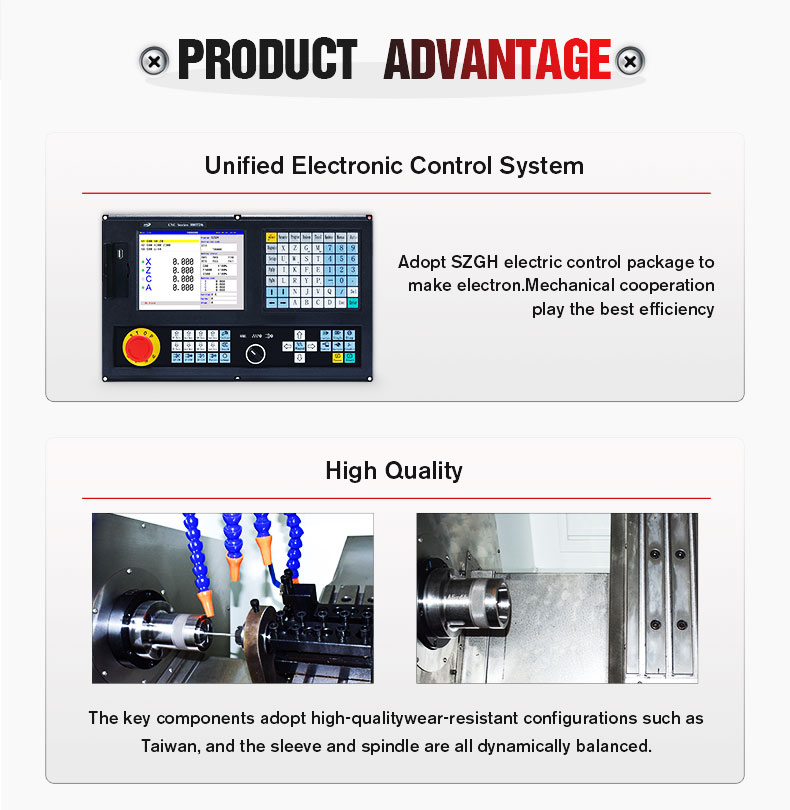

1. It can be equipped with SZGH brand lathe controller,
2. It is equipped with a spindle motor of 2.2kW and a variable frequency drive
3. It is equipped with a 3.7kW servo spindle and a feed servo of 1.3kW and a servo drive, and can be equipped with an SZGH speed regulating servo
Application scope:
SZGH-25 is suitable for processing products with a single-sided cutting amount within 2mm, a precision tolerance within ±0.01mm, and a finish within 1.6. It is widely used in the upgrading and transformation of hard rail CNC lathes and hydraulic automatic lathes to achieve automated production, save labor costs, improve product quality, and enhance product benefits.
