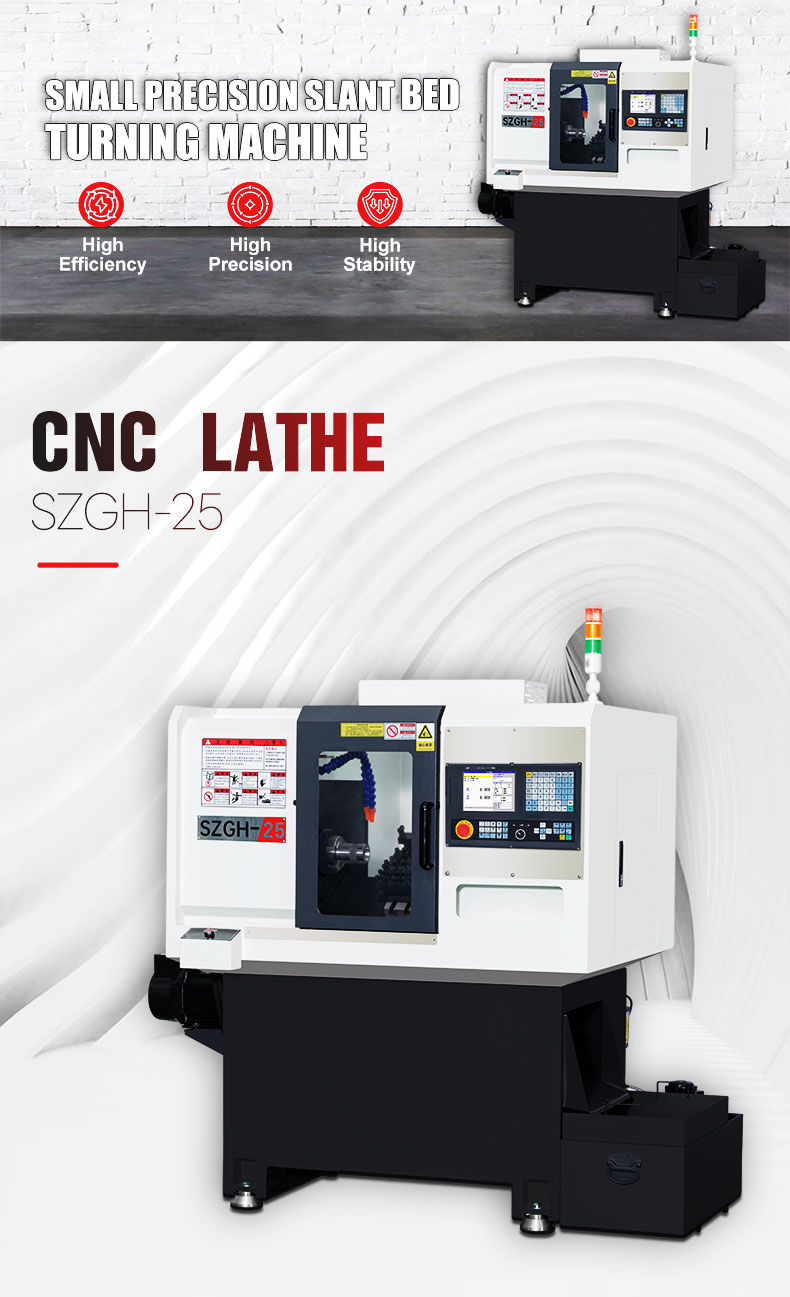

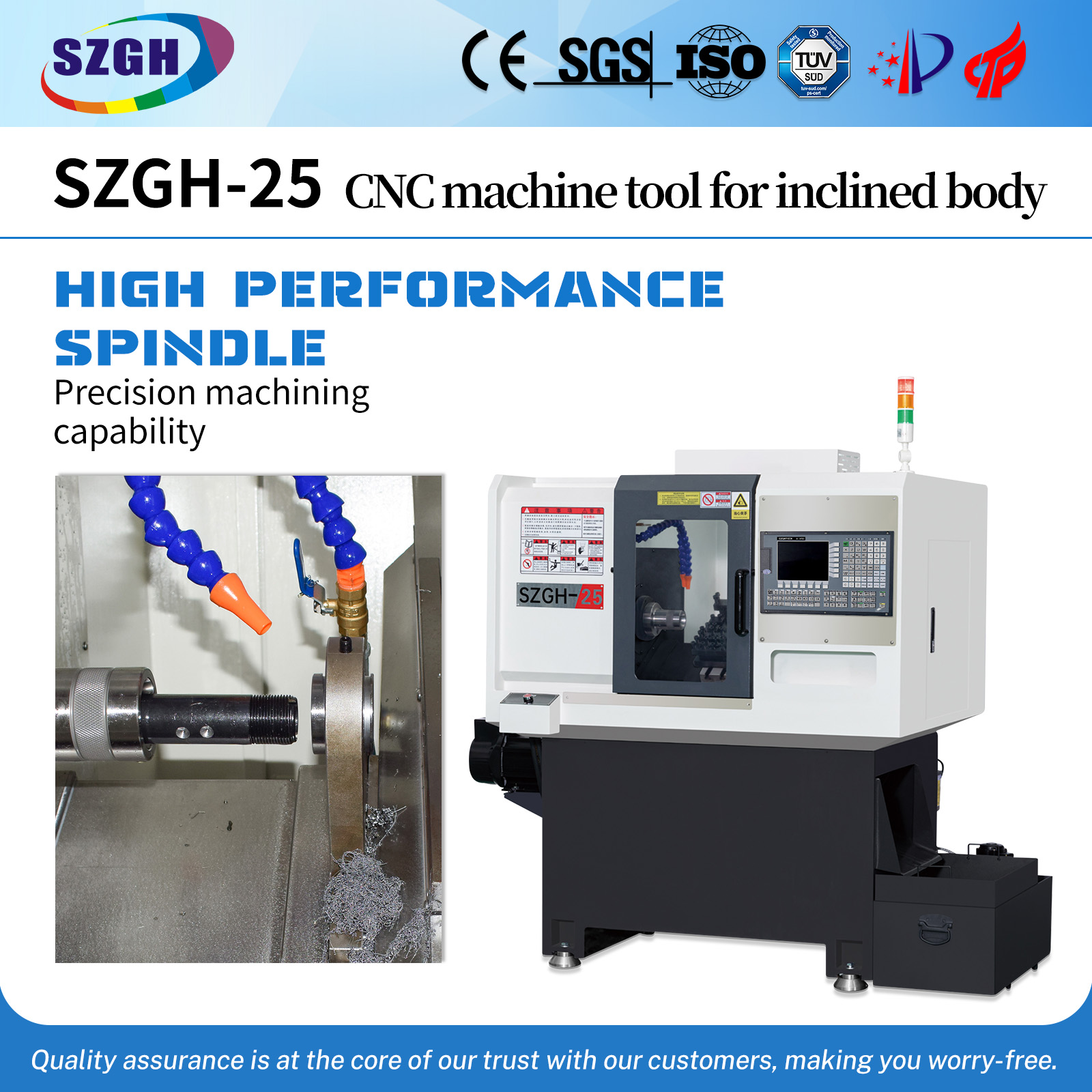

CNC SZGH-25 Small-lathe support stable movement of the driving head.

Description:

SZGH-25 Small lathe is suitable for batch production of copper, iron, aluminum and stainless steel bars within 25mm, and batch production of open-type forged parts with automatic feeding of pellets within 50mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.

  • Model : SZGH-25
  • OEM : SZGH
  • Sample: Yes, sample production provided within 10-15 working days
  • Payment : 30% deposit, 70% balance before shipment (T/T or L/C accepted)
  • Place of Origin: ShenZhen China
  • Supply Ability : 100 units/month, scalable based on demand

Hotline

86-19928711953 ( Wechat & WhatsApp )


configuration parameter：

product category

Product Parameter
product category
Product Parameter
X-axis travel500 mmZ-axis travel180 mm
Max.Spindle Speed
3500-4000rpm
X/Z-axis rapid traverse
20-30m/min
X/Z -axis servo-motor power1.3KW
Cutting amount of stainless steel on one side
2-2.5mm
Max. diameter of bar bore
25-26mm
Max. particle diameter (disk type)
200-300mm
Max. length of workpiece
150-180mm
Cutting amount of stainless steel on one side
2-2.5mm
Machining accuracy of the workpiece
+-0.01mm
Square Knife Specifications
16mm
Turning Diameter
 350mm
Spindle motor
2.2KW
Clamping method
hydraulic clamping
Feed servo
SZGH Speed Servo
