cnc milling machine 540D
Description:
It is suitable for 8-station processing of copper, iron, aluminum and stainless steel workpieces within 500mmx400mm. The operation is compatible with the general machining center in the market, and supportsdrilling, tapping, milling, engraving and other functions. Using multiple patented technologies such as highrigidity and anti-deformation structure, it is suitable for processing stainless steel parts with tapping within8mm and drlling within 10mm. Due to the small footprint, it is convenient for one person to manage multiple machines, improve per capita output efficiency and reduce processing costs.
- Model : SZGH- 540D
- OEM : YES
- Sample: Yes, sample production provided within 10-15 working days
- Payment : 30% deposit, 70% balance before shipment (T/T or L/C accepted)
- Place of Origin: ShenZhen China
- Supply Ability : 500 units per month
Hotline
86-19928711953 ( Wechat & WhatsApp )

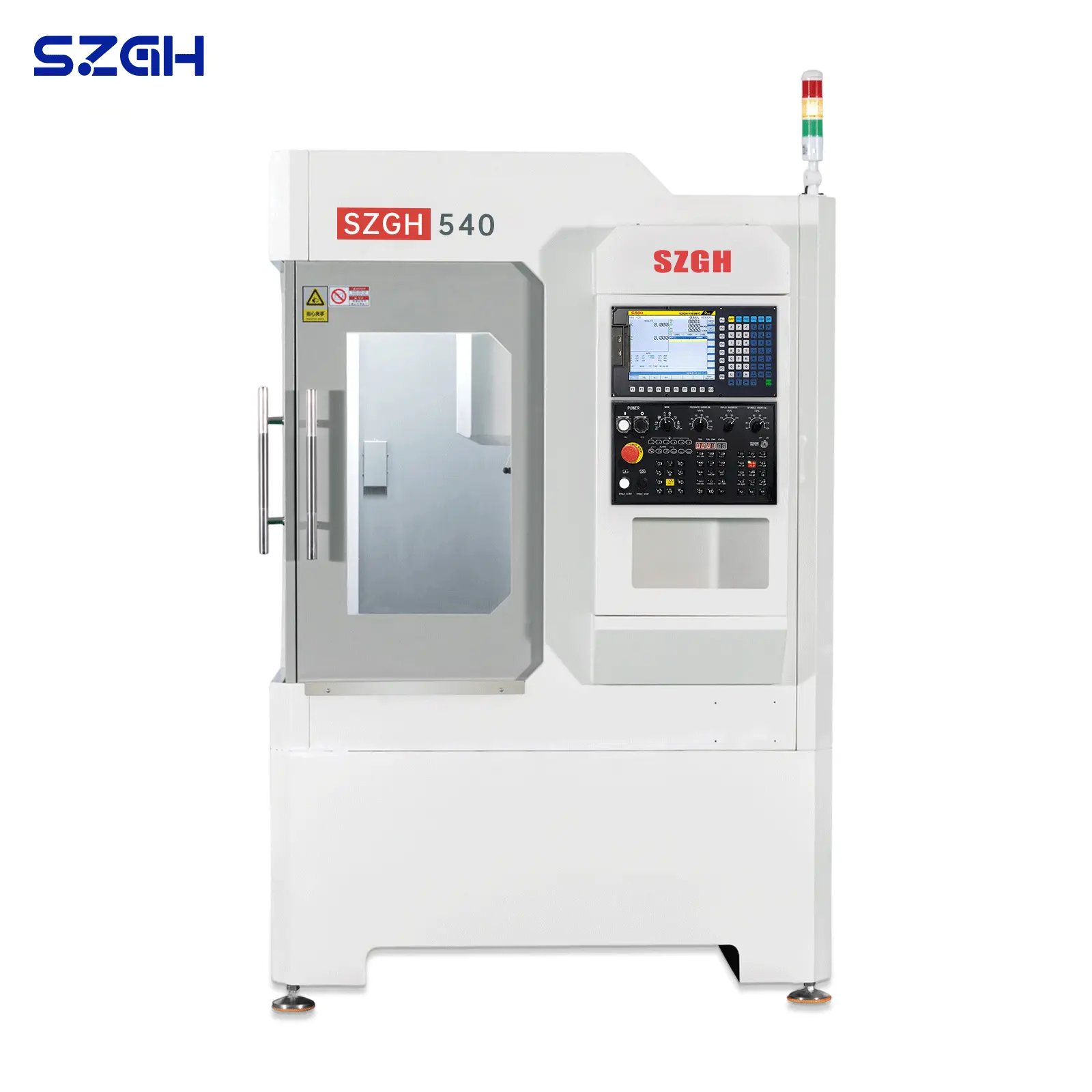

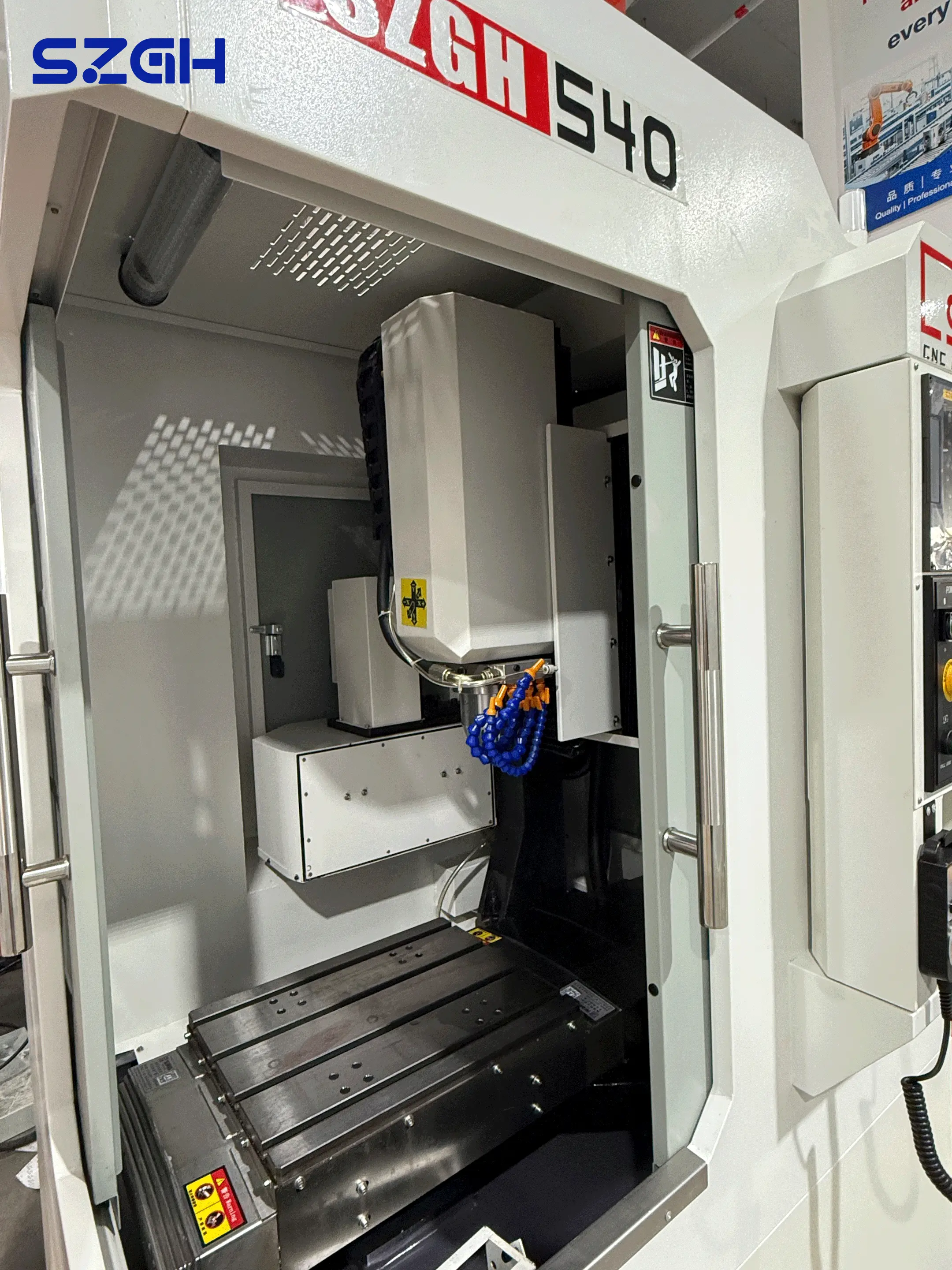

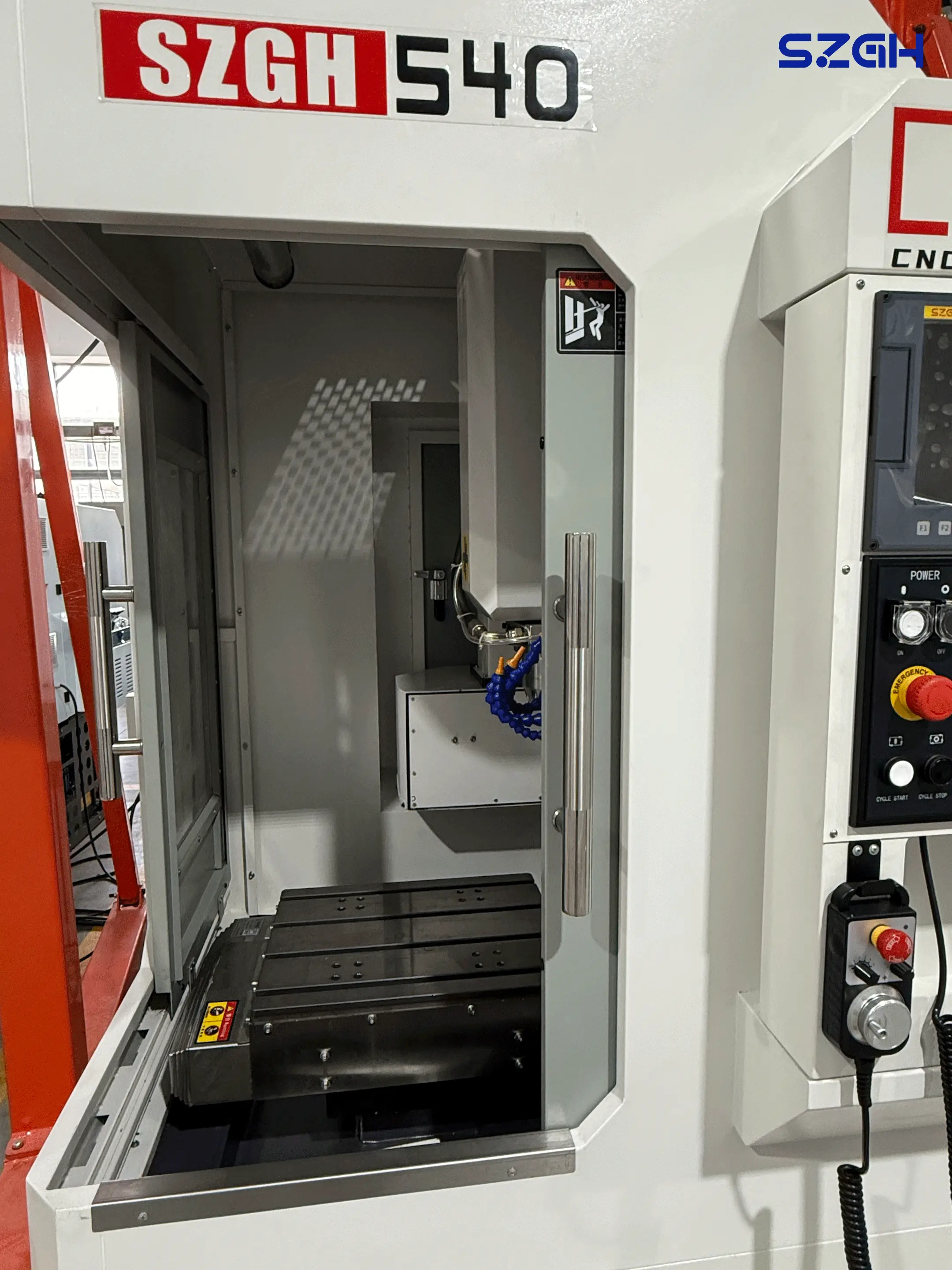

SZGH-540D Compact High-Precision CNC Milling Machine

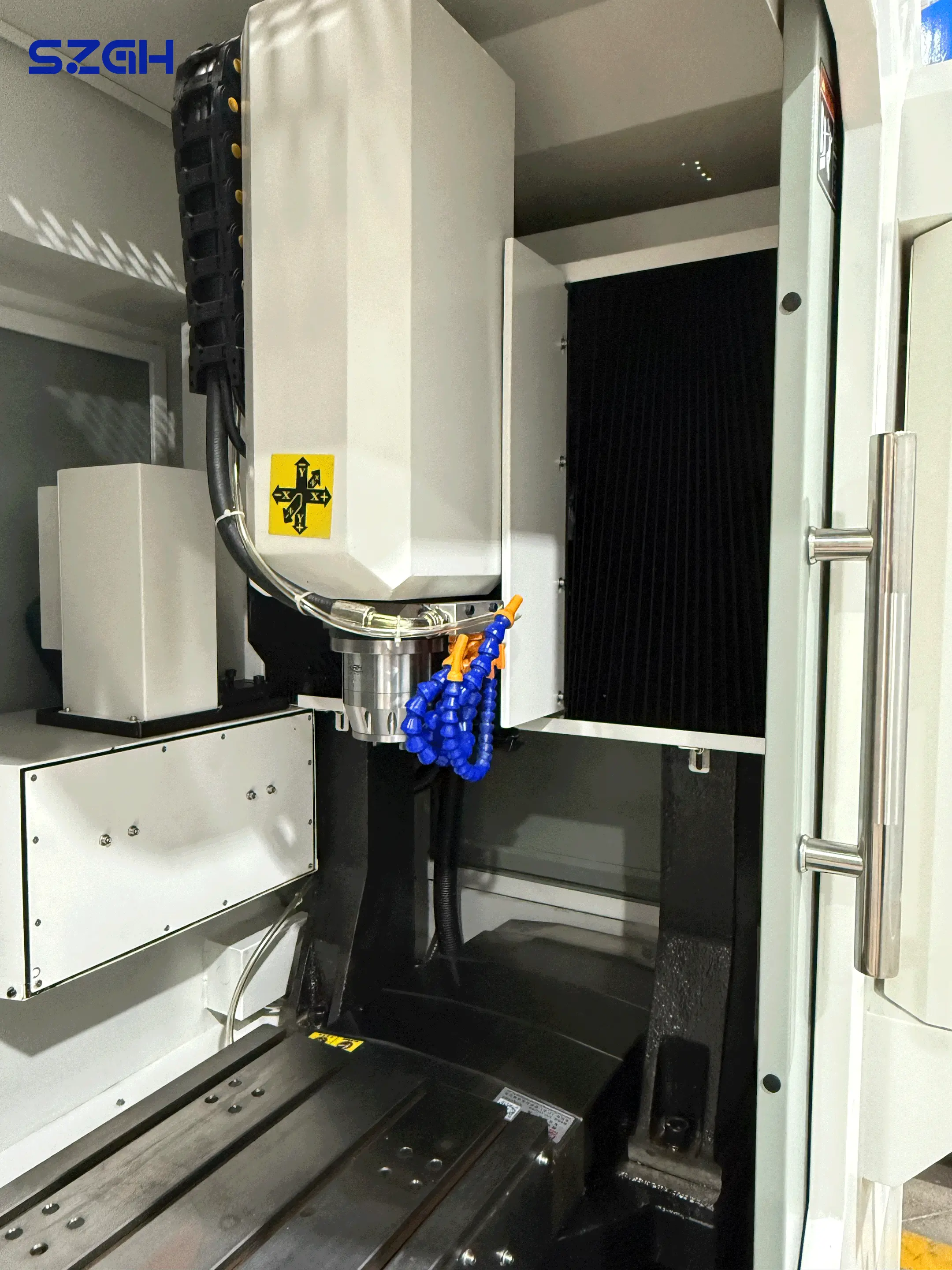

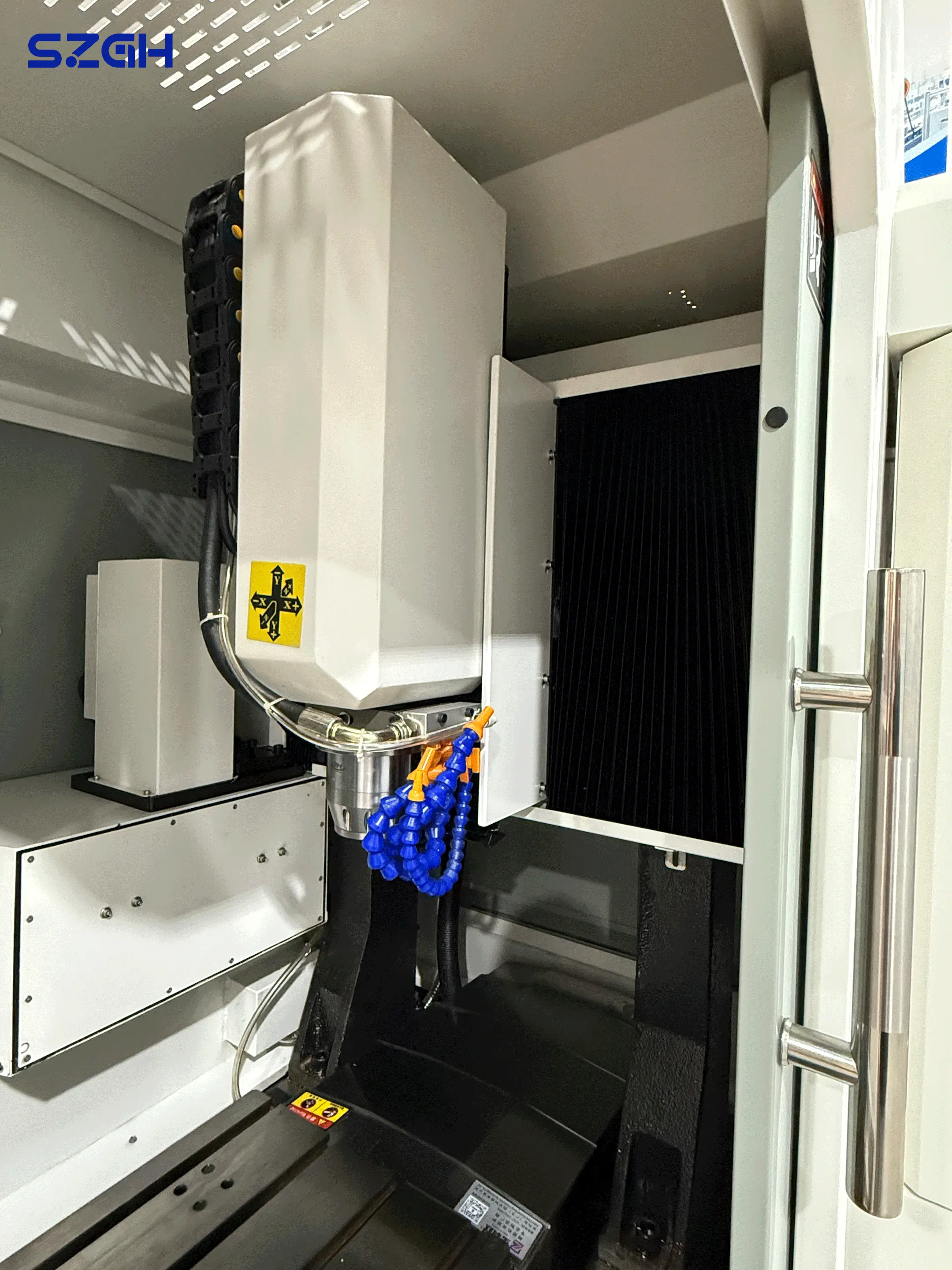

The SZGH-540D CNC Milling Machine is an industrial-grade, ultra-compact machining center engineered for high-efficiency milling, drilling, tapping, and engraving. Equipped with a 24000 RPM high-speed electric spindle, an 8-tool automatic magazine (BT30), and an integrated SZGH electric control system, the SZGH-540D delivers exceptional 0.01mm repeatability while maintaining a minimal floor footprint.
Designed with a 1200kg patented heavy-duty anti-deformation base, this machine provides maximum rigidity, superior anti-vibration performance, and long-term machining accuracy—enabling one operator to efficiently manage multiple units and significantly reduce operational costs.
Key Features & Product Highlights
- Patented Anti-Deformation Heavy Duty Base (1200 kg) Built on a solid, patented heavy-duty base that effectively absorbs operational vibration, ensuring smooth surface finishes and long-term accuracy during high-speed feed movements.
- 24000 RPM High-Speed BT30 Electric Spindle Dynamically balanced spindle setup delivers rapid cutting speeds and superior precision when machining copper, aluminum, iron, and stainless steel workpieces.
- Precision Taiwan Linear Motion System Utilizes Taiwan P-grade precision ball screws (25mm) and C3-grade guide rails (25mm) to guarantee high rigidity, smooth travel, and an exact repeatability of 0.01 mm.
- Integrated SZGH Servo Drive & CNC Controller Fully matched with SZGH proprietary electric control packages, including high-response feed servos (X/Y/Z) and 3kW spindle servo motors for perfect electromechanical synergy and lower failure rates.
- Small Footprint, High Per-Capita Output Occupying only 1350 × 1050 mm of floor space, the compact design allows flexible shop floor layout and enables multi-machine operation by a single technician to lower labor costs.

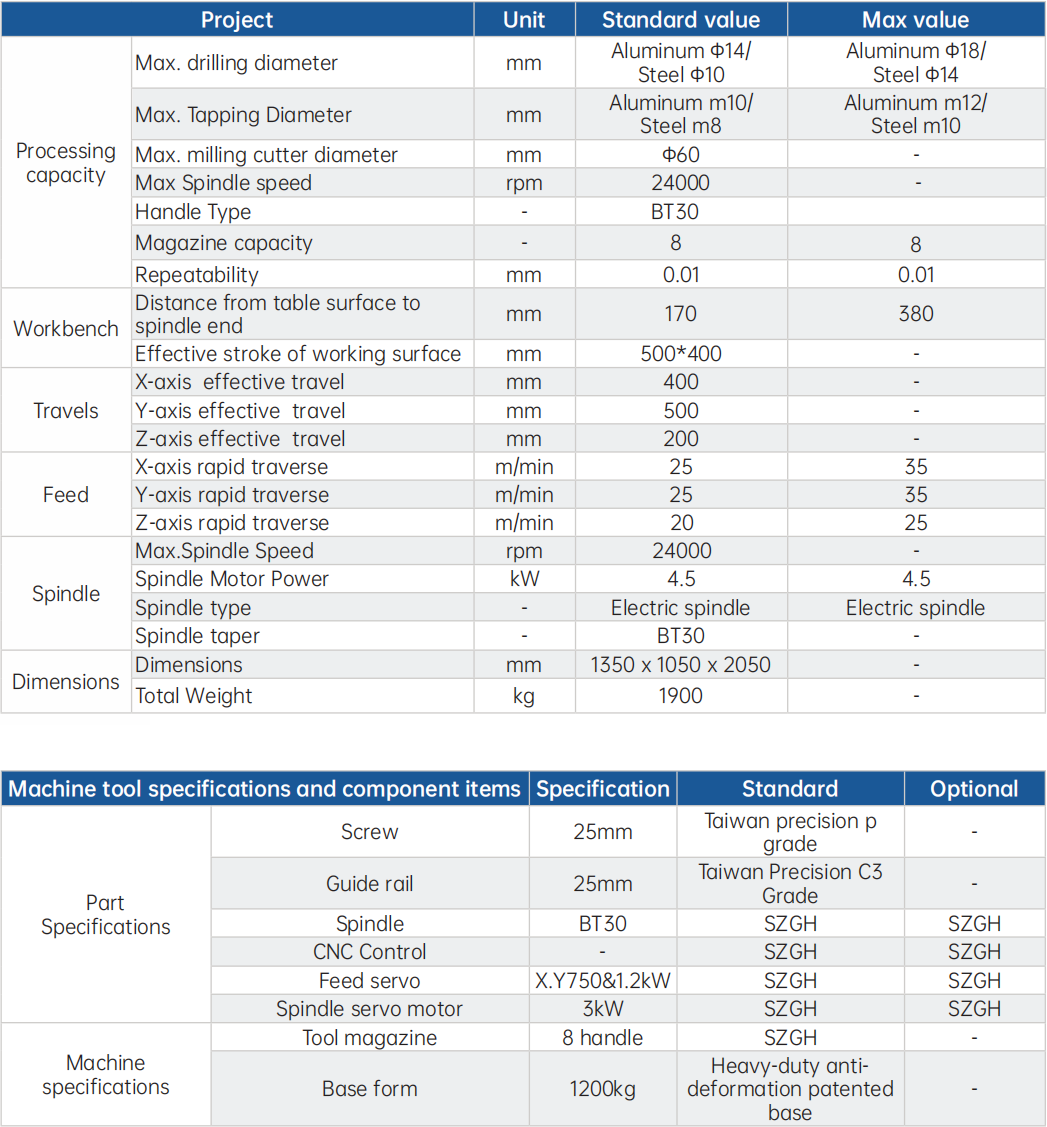

Technical Specifications
The SZGH-540D is widely applied in precision parts manufacturing, electronics enclosures, medical components, automotive parts, and general hardware processing.
- Workpiece Size: Suitable for parts within 500 mm × 400 mm.
- Machining Capability: Tapping within 8 mm (steel) / 10 mm (aluminum), drilling within 10 mm (steel) / 14 mm (aluminum).
- Process Compatibility: Compatible with standard machining center operations including drilling, tapping, milling, engraving, and 8-station continuous processing.
Why Choose Shenzhen Guanhong (SZGH)?
1.Integrated Automation Expertise: Direct manufacturer of CNC systems, industrial arms, and automated machine tools.
2.Factory-Direct Quality Control: Every machine undergoes dynamic balancing, laser interferometer testing, and strict quality verification.
3.Global After-Sales & Support: Full technical instruction, fast spare parts availability, and online engineering assistance.
Get a Free Quote & Custom Solution
Looking to upgrade your precision machining line while optimizing shop floor efficiency? Contact our engineering team today for factory-direct pricing, technical specs, and customized configuration advice.
