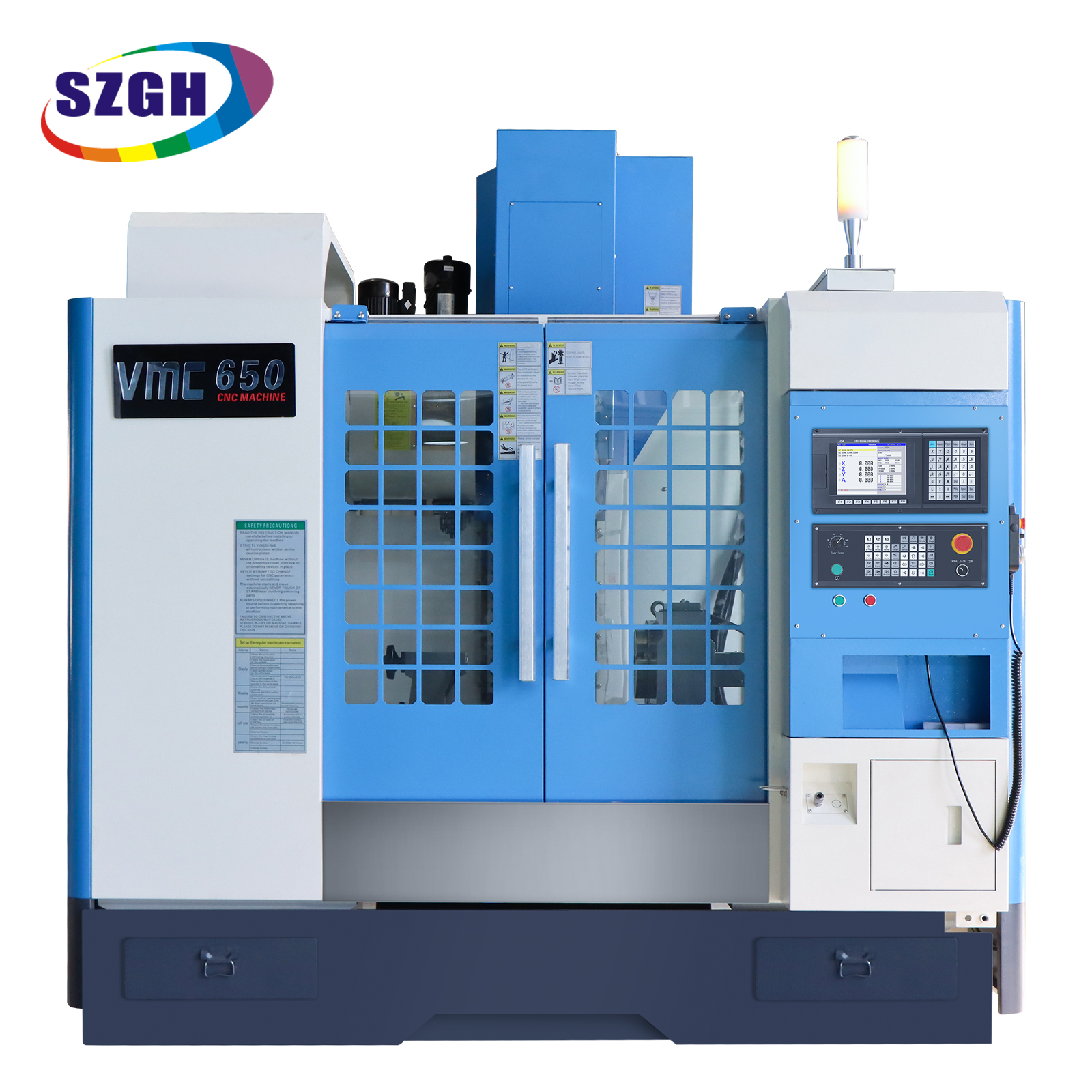

VMC-machine-center-SZGH-VMC650-CNC-machine

Description:

The machine SZGH-VMC650 body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body.Linear Guide Rail X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail, may satisfy the customer the speed, the precision high request.

  • Model : SZGH-VMC650
  • OEM : Available
  • Sample: support
  • Payment : 30% deposit, 70% balance before shipment (T/T or L/C accepted)
  • Place of Origin: China
  • Supply Ability : 500 units per month

Hotline

86-19928711953 ( Wechat & WhatsApp )

Table size                                                                  900x400mm
X axis travel                                                              650mm
Y axis travel                                                               400mm
Z axis travel                                                               500mm
Max.worktable load                                                400kg
T solt(numberof slotxslotxpitch)                          5-16
Distance from spindle nose to table surface    100-600
Distance from spindle center to column
guide surface                                                                  476mm
