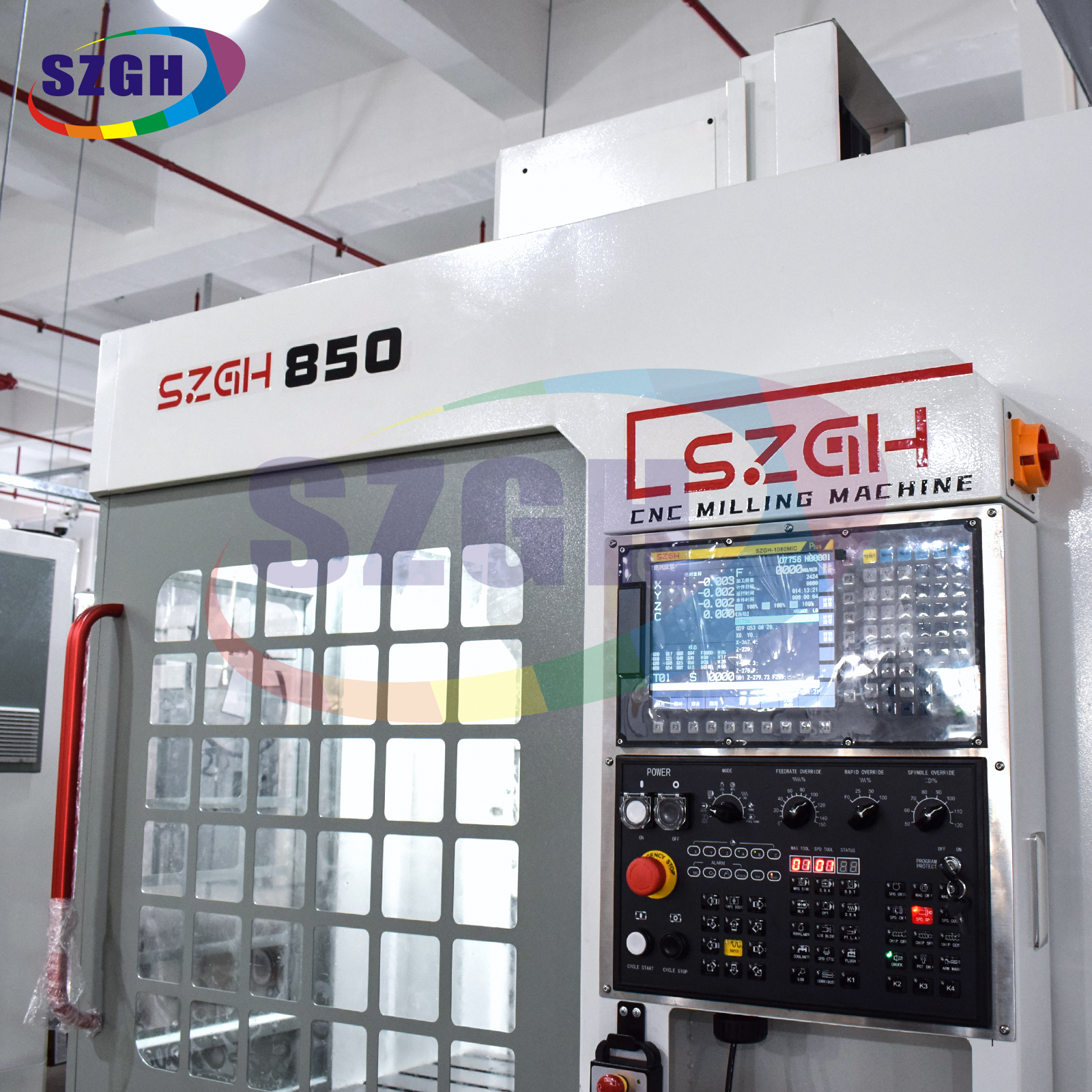

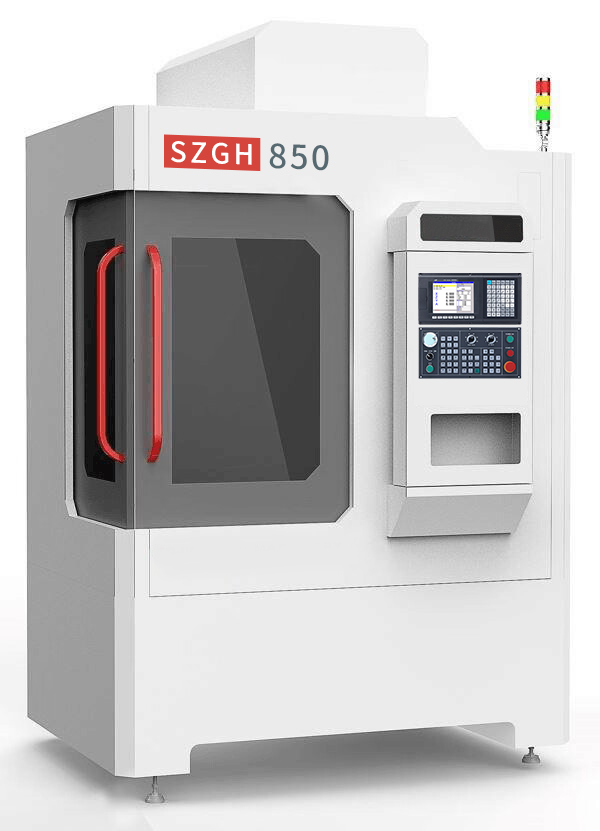

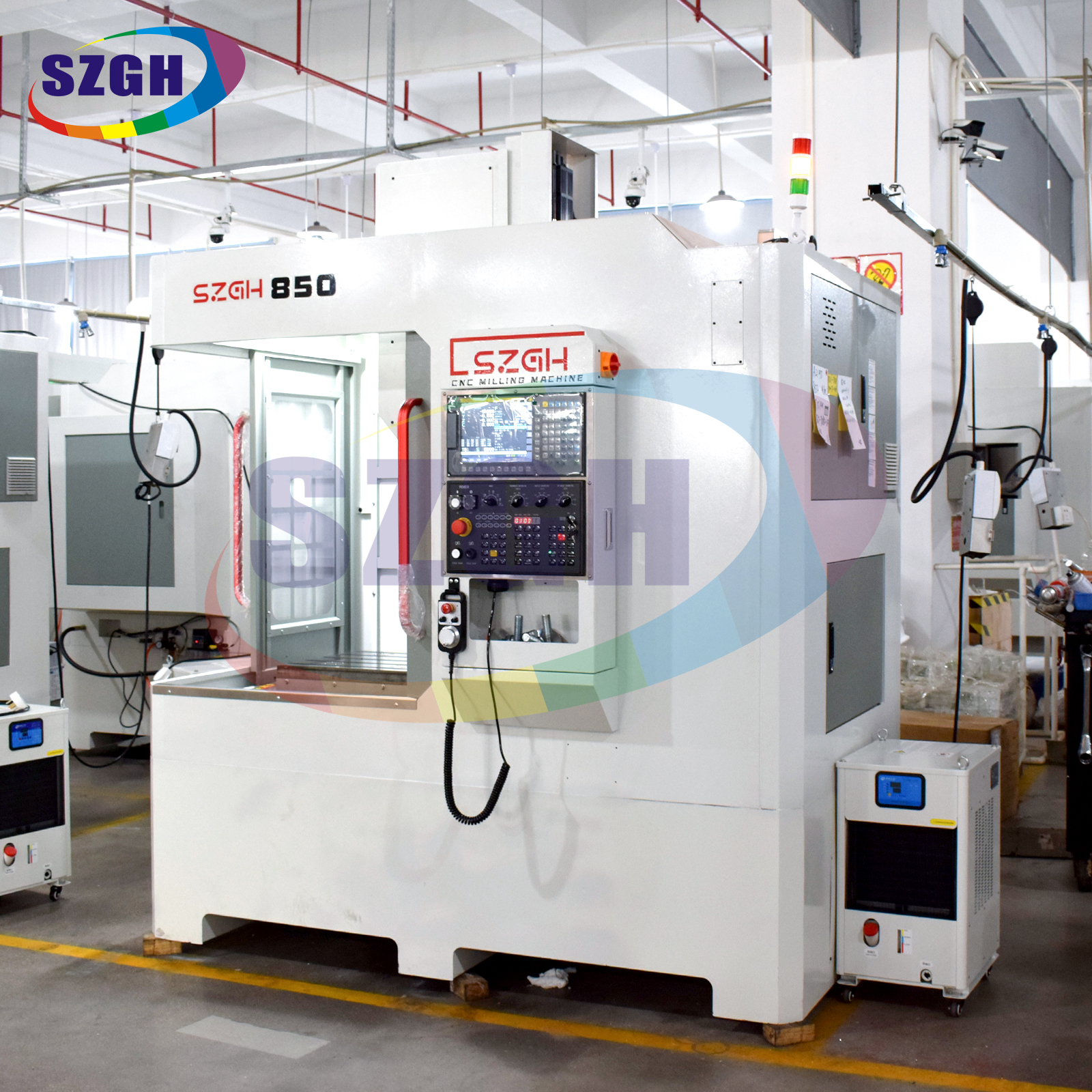

The SZGH-850 Series Vertical CNC Machining Center is a high-precision
Description:
The SZGH-850 Series Vertical CNC Machining Center is a high-precision, high-efficiency solution for modern manufacturing. Whether you need a 3-axis CNC machine for heavy-duty cutting or a high-speed CNC milling machine for precision work, the SZGH-850 series provides reliability, flexibility, and outstanding performance. Built with advanced CNC control systems, high-quality imported components, and full machine protection, this model is trusted by manufacturers across automotive, aerospace, electronics, mold-making, and general metalworking industries.
- Model : SZGH-850
- OEM : Acceptable customization
- Sample: Yes, sample production provided within 10-15 working days
- Payment : 30% deposit, 70% balance before shipment (T/T or L/C accepted)
- Place of Origin: China
- Supply Ability : 100 units/month, scalable based on demand
Hotline
86-19928711953 ( Wechat & WhatsApp )
The SZGH-850 Series Vertical CNC Machining Center is a high-precision, high-efficiency solution for modern manufacturing. Whether you need a 3-axis CNC machine for heavy-duty cutting or a high-speed CNC milling machine for precision work, the SZGH-850 series provides reliability, flexibility, and outstanding performance.
Built with advanced CNC control systems, high-quality imported components, and full machine protection, this model is trusted by manufacturers across automotive, aerospace, electronics, mold-making, and general metalworking industries.
Key Features & Standard Configuration
-
CNC Control System

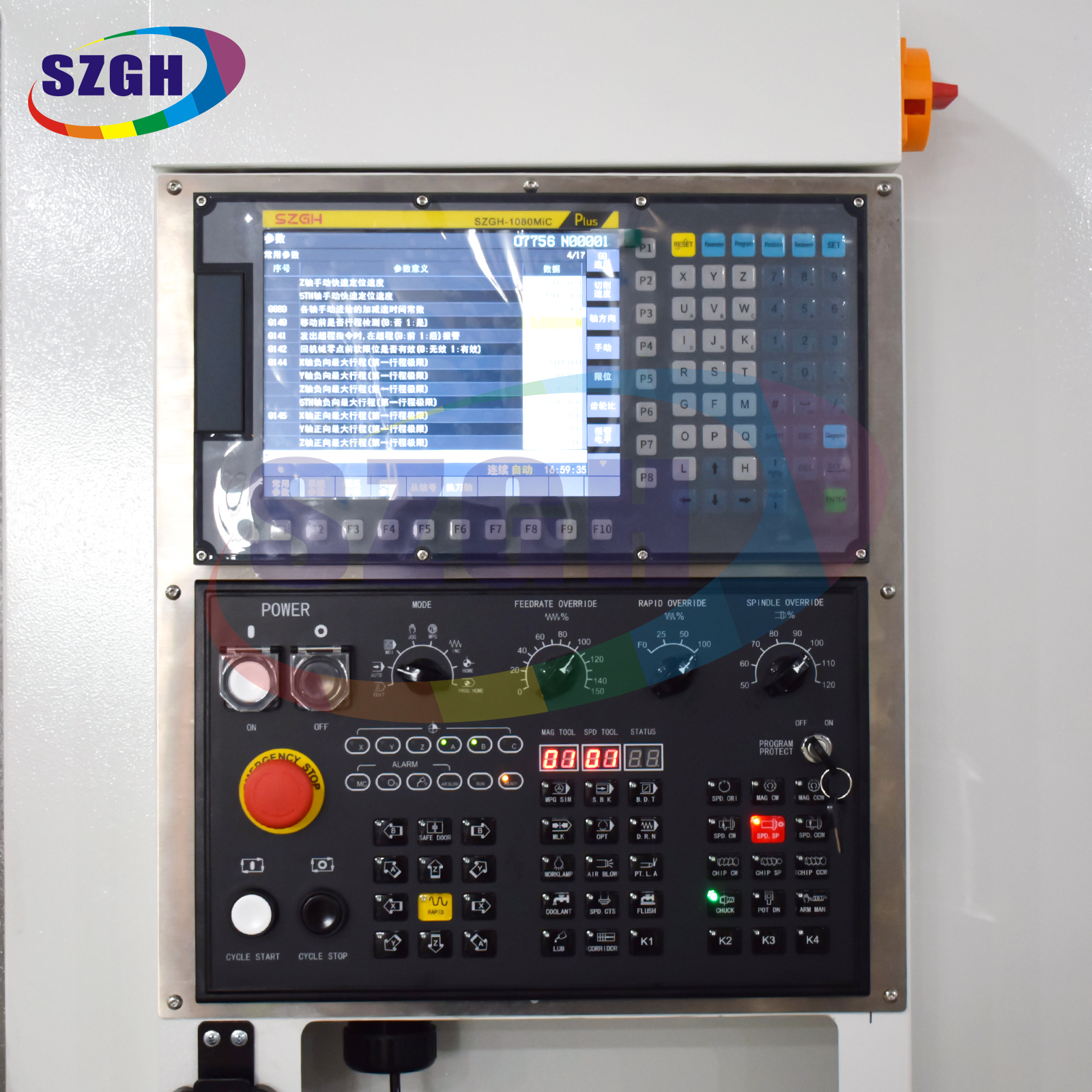

Equipped with SZGH-1080Mic controller.
Supports G-code programming, ensuring compatibility with global CNC standards.
-

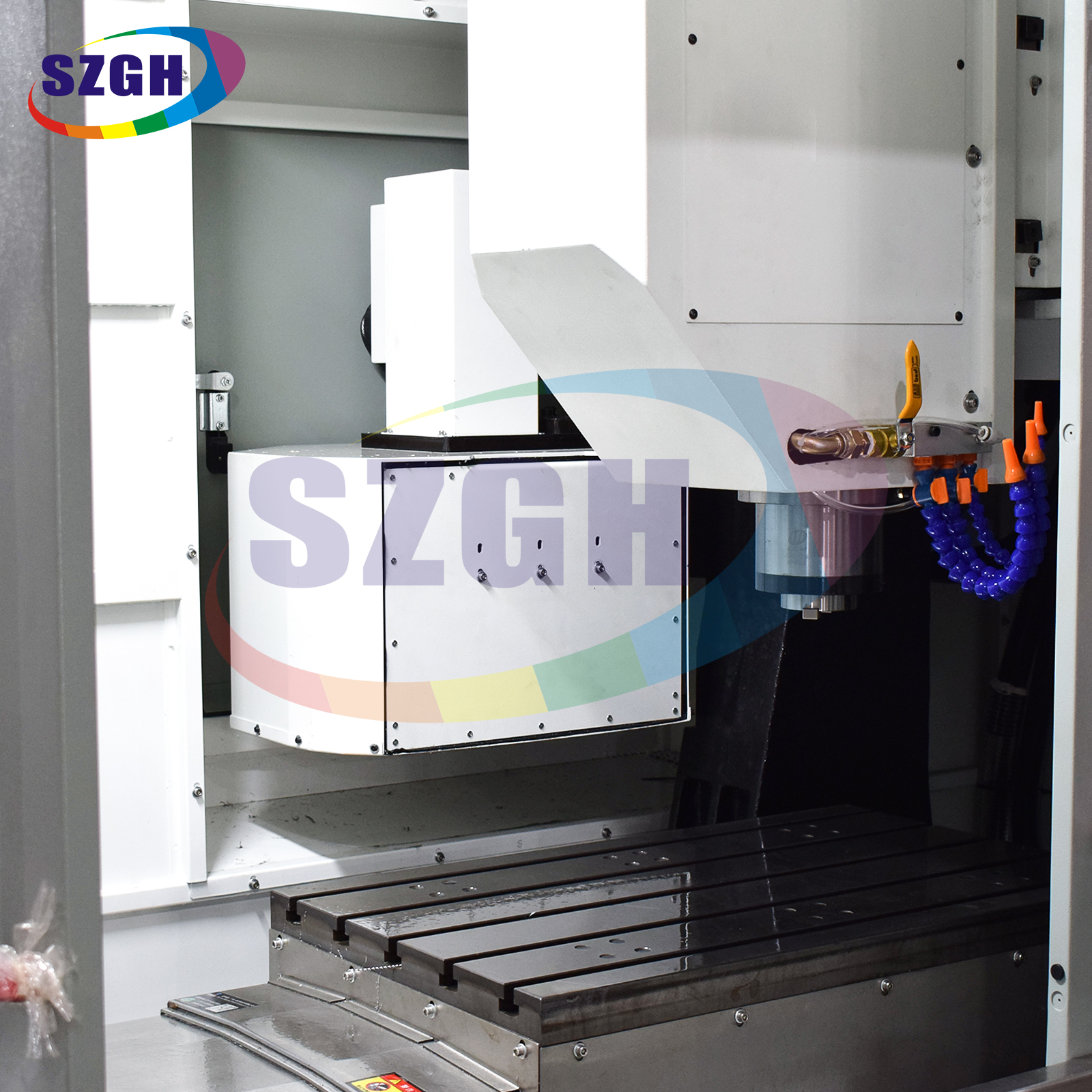

Spindle Options
SZGH-850 (Mechanical Spindle): Max speed 6000 rpm, motor 5.5kW (optional 7.5kW)
SZGH-850D (Electric Spindle): High-speed spindle, max speed 24,000 rpm, available in variable frequency and servo motor options
-
Machine Reliability

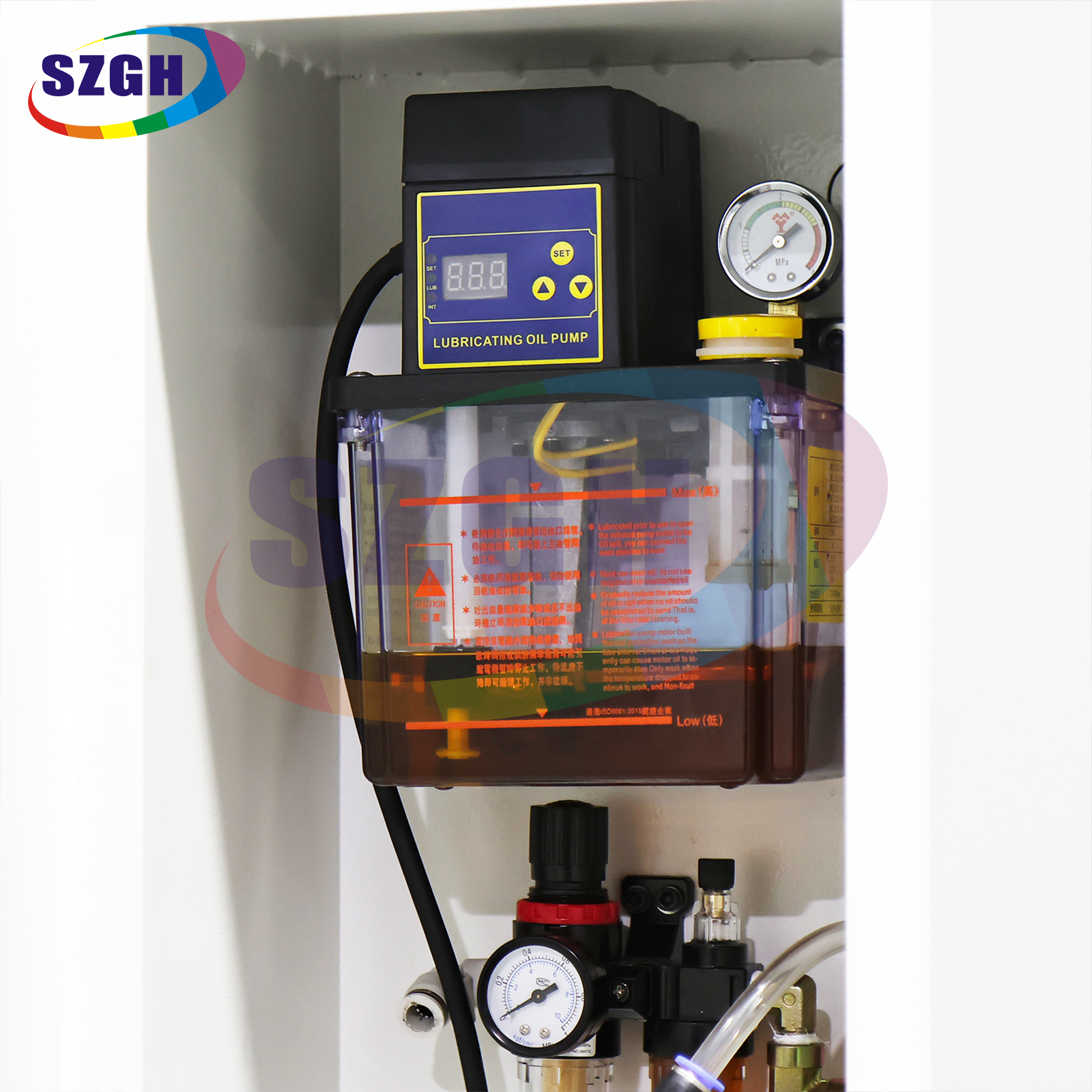

Automatic intermittent lubrication system.
LED work light for improved visibility.
USB interface for fast data transfer.
Fully enclosed protective covers and guideway shields.
Leveling blocks and bolts included.
These features ensure stable operation, easy maintenance, and long-term durability in demanding production environments.
Item | SZGH-850 (Mechanical Spindle) | SZGH-850D (Electric Spindle) |
Worktable Size (W×L) | 800 × 500 mm | 800 × 500 mm |
Max Table Load | 400 kg | 400 kg |
Spindle Speed | 6000 rpm | 24,000 rpm |
Spindle Power | 5.5 / 7.5 kW | 7.5 kW |
Spindle Taper | BT40 | BT30 |
Travel (X / Y / Z) | 500 / 800 / 300 mm | 500 / 800 / 300 mm |
Feed Rate (Rapid) | X: 30 m/min, Y: 30 m/min, Z: 25 m/min | Same |
Cutting Feed Rate | Max 10,000 mm/min | Max 10,000 mm/min |
Positioning Accuracy | 0.01 mm | 0.01 mm |
Tool Magazine | 10-position servo ATC | 12-position servo ATC |
Tool Holder Type | BT40 | BT30 |
Max Drill Diameter | Ø30 mm | Ø30 mm |
Max Tapping Size | M16 / M20 | Alu: M10, Steel: M6 |
Max Tool Diameter | Ø63 mm | Ø63 mm |
Air Pressure | 5 kgf/cm² | 5 kgf/cm² |
Power Requirement | 12 kW | 12 kW |
Machine Dimensions (L×W×H) | 2200 × 1850 × 2550 mm | Same |
Machine Weight | 3500 kg | 3500 kg |
Advantages of SZGH-850 Series
High Precision: Positioning accuracy of 0.01 mm makes it a perfect precision CNC machine.
Versatility: Choose between mechanical spindle for heavy-duty jobs or electric high-speed spindle for fast, fine cutting.
Durability: High-rigidity structure combined with Taiwan ball screws ensures long service life.
Efficiency: Servo-driven automatic tool changer (ATC) with 10 or 12 positions improves cycle time.
Operator-Friendly: USB interface, bright work lights, and intuitive CNC programming.
Low Maintenance: Enclosed design and automatic lubrication reduce downtime.
These features make the SZGH-850 series one of the most cost-effective CNC machining centers from China.
Applications
The SZGH-850 CNC Machining Center is widely used in:
Automotive Parts: engine housings, transmission parts, fasteners, precision brackets
Aerospace Components: aluminum alloy structural parts, precision drilling and milling
Electronics Industry: heat sinks, connectors, metal casings
Mold & Die Making: injection molds, stamping dies, precision tooling
General Metalworking: steel, copper, aluminum, stainless steel
For manufacturers requiring a reliable vertical CNC machining center for high-volume production, this machine offers the right balance of performance, precision, and price.
Why Choose SZGH CNC?
Over 20 years of CNC manufacturing experience
Reliable after-sales support and global service network
Customized CNC machine solutions for different industries
Competitive pricing without compromising performance
As a professional CNC machining center manufacturer in China, SZGH delivers machines that help businesses increase productivity and profitability.
Conclusion
The SZGH-850 / SZGH-850D Vertical CNC Machining Centers are built for modern factories seeking speed, precision, and reliability. With robust construction, high-speed spindles, and world-class imported components, this machine is the ideal choice for CNC machining of automotive parts, aerospace components, electronics, and mold-making.
If you are looking for a cost-effective CNC machining solution from China, the SZGH-850 series is the smart investment for your production line.
Machine Dimensions & Weight
Both SZGH-850 and SZGH-850D Vertical CNC Machining Centers share the same machine footprint and weight, making them suitable for workshops with limited space while still delivering industrial-grade performance.
Overall Machine Dimensions (L×W×H): 2200 × 1850 × 2550 mm
Net Machine Weight: 3500 kg
The compact design ensures easy installation, while the heavy machine base provides excellent rigidity and vibration resistance, guaranteeing stable precision CNC machining even under heavy-duty cutting conditions.
