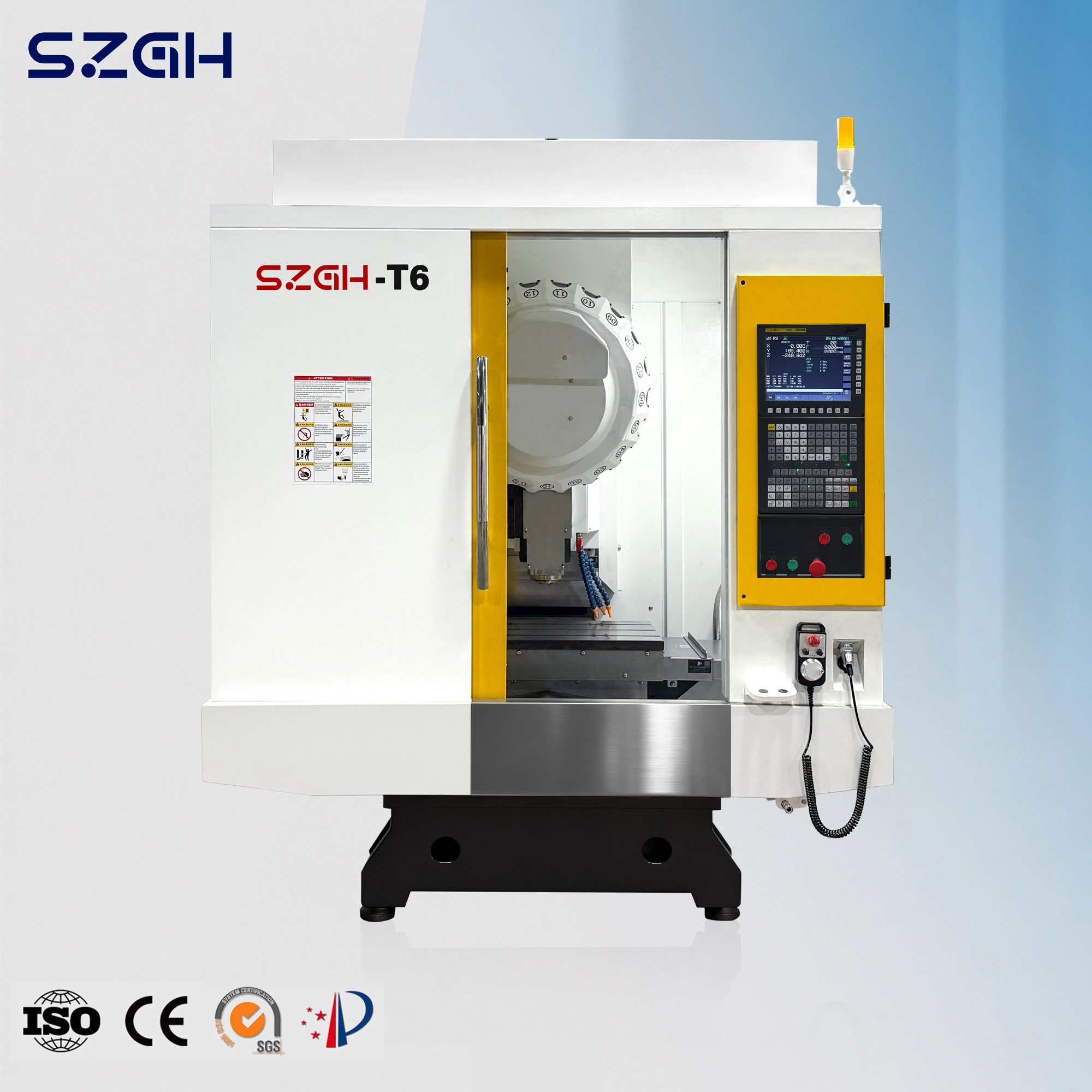

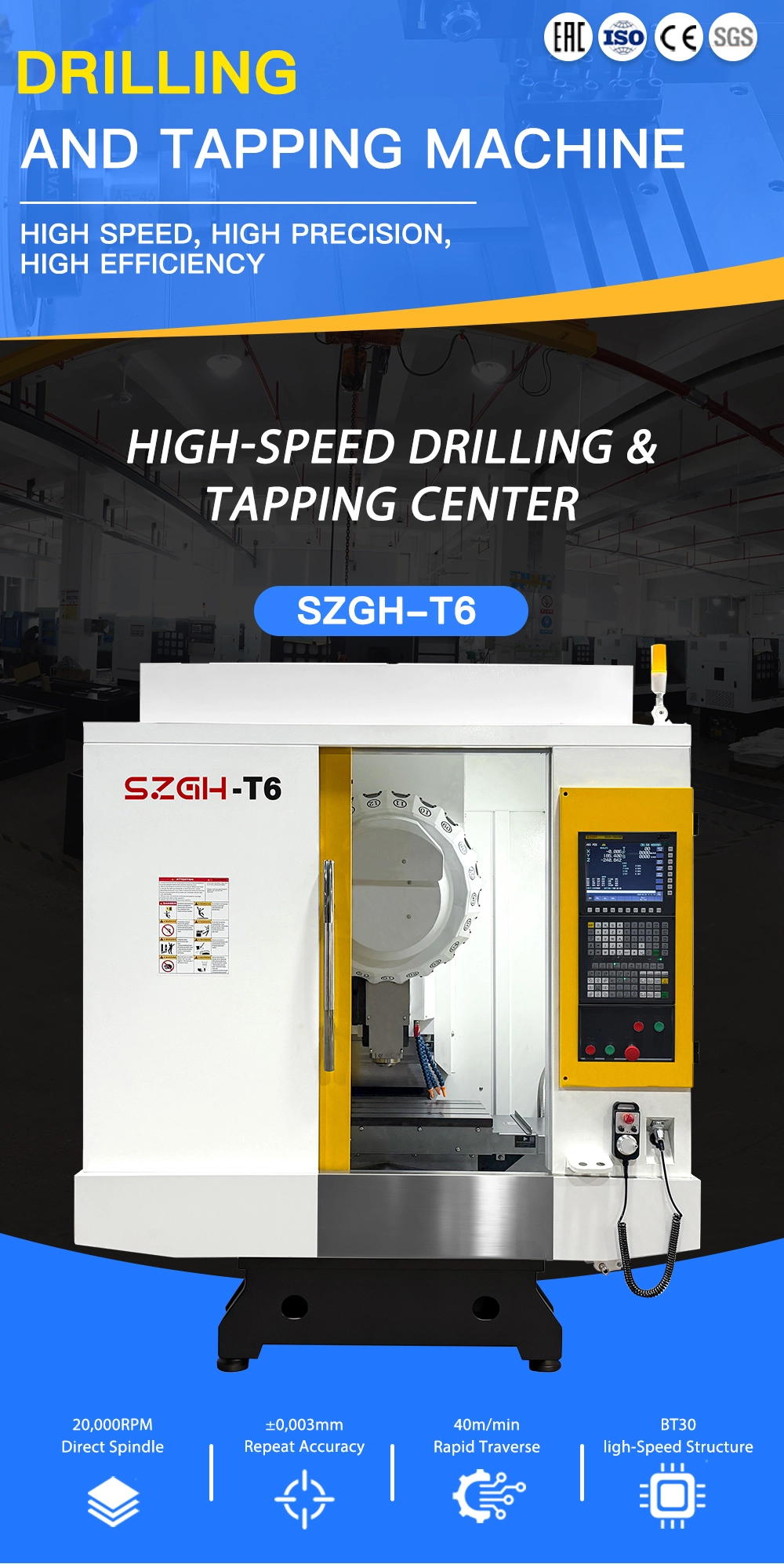

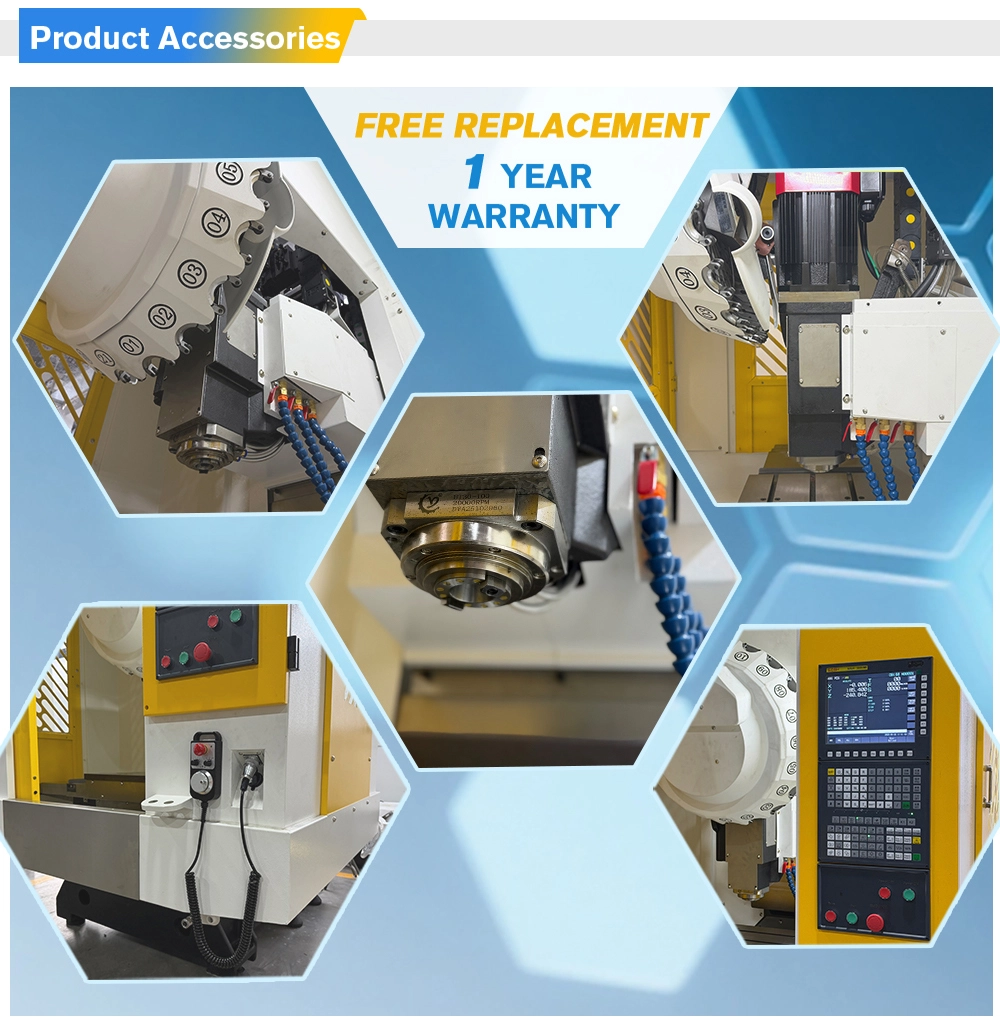

SZGH-T6 Drilling and Tapping Machine – High-Rigidity Precision Machining Center
Description:
The SZGH-T6 Drilling & Tapping Center is a high-speed CNC machining solution for precision drilling, tapping, and milling applications. Built with a rigid cast iron structure, HIWIN linear guides, C3-grade ball screws, and a precision spindle, it provides excellent accuracy, stability, and durability. Featuring a 21-tool servo magazine, the T6 is widely used in 3C electronics, automotive parts, molds, and precision component manufacturing.
- Model : SZGH-T6
- OEM : YES
- Sample: Yes, sample production provided within 10-15 working days
- Payment : 30% deposit, 70% balance before shipment (T/T or L/C accepted)
- Place of Origin: ShenZhen China
- Supply Ability : 500 units per month
Hotline
86-19928711953 ( Wechat & WhatsApp )

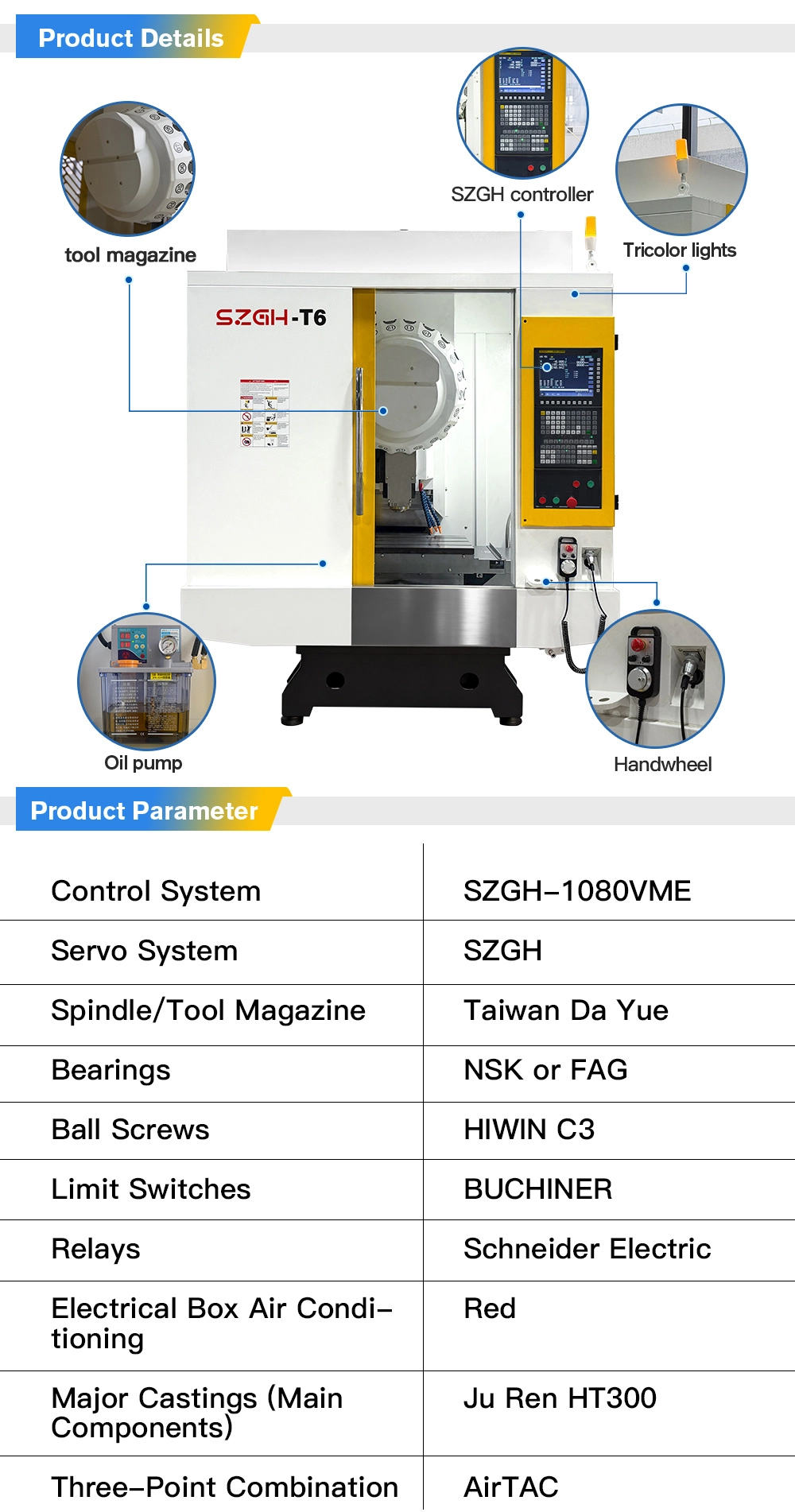

| Project | SZGH-T6 | |
|---|---|---|
| Machine Tool Stroke | X-axis stroke | 600 mm |
| Y-axis stroke | 400 mm | |
| Z-axis stroke | 330 mm | |
| From the nose end of the spindle to the worktable surface | 120-450 mm | |
| From the spindle center to the column | 493 mm | |
| Workbench | Bed dimension | 700×420 mm |
| T-shaped groove | 14T (14mm top opening, 24mm bottom width, equipped with M12 bolts) | |
| Maximum workbench load capacity | 400 kg | |
| Spindle | Spindle taper | BT30/100 |
| Maximum spindle speed | 20,000 rpm spindle | |
| Driving mode | Direct | |
| Main spindle power(KW) | 5.5 kW | |
| Feed Axis | X-axis transmission method | Direct-type |
| Y-axis transmission method | Direct-type | |
| Z-axis transmission method | Direct-type | |
| Z-axis counterweight method | 1 Servo brake system | |
| Three-axis cutting speed | 1-12000 mm/min | |
| Three-axis rapid speed | 40 m/min | |
| Track Rail | X-axis linear rail specifications | HIWIN HGH30 P Precision Grade |
| Y-axis rail specification | HIWIN HGH30 P Precision Grade | |
| Z-axis linear guide specifications | HIWIN HGH30 P Precision Grade | |
| Three-axis laser positioning accuracy | VDI(3441) mm ±0.005/300 | |
| Repetitive laser positioning accuracy | VDI(3441) mm ±0.003 | |
| General Information | Required air pressure | 2.5 kgf/cm² |
| Mechanical weight | 3000 KG | |
| Floor space | 1900*2300*2400 mm | |

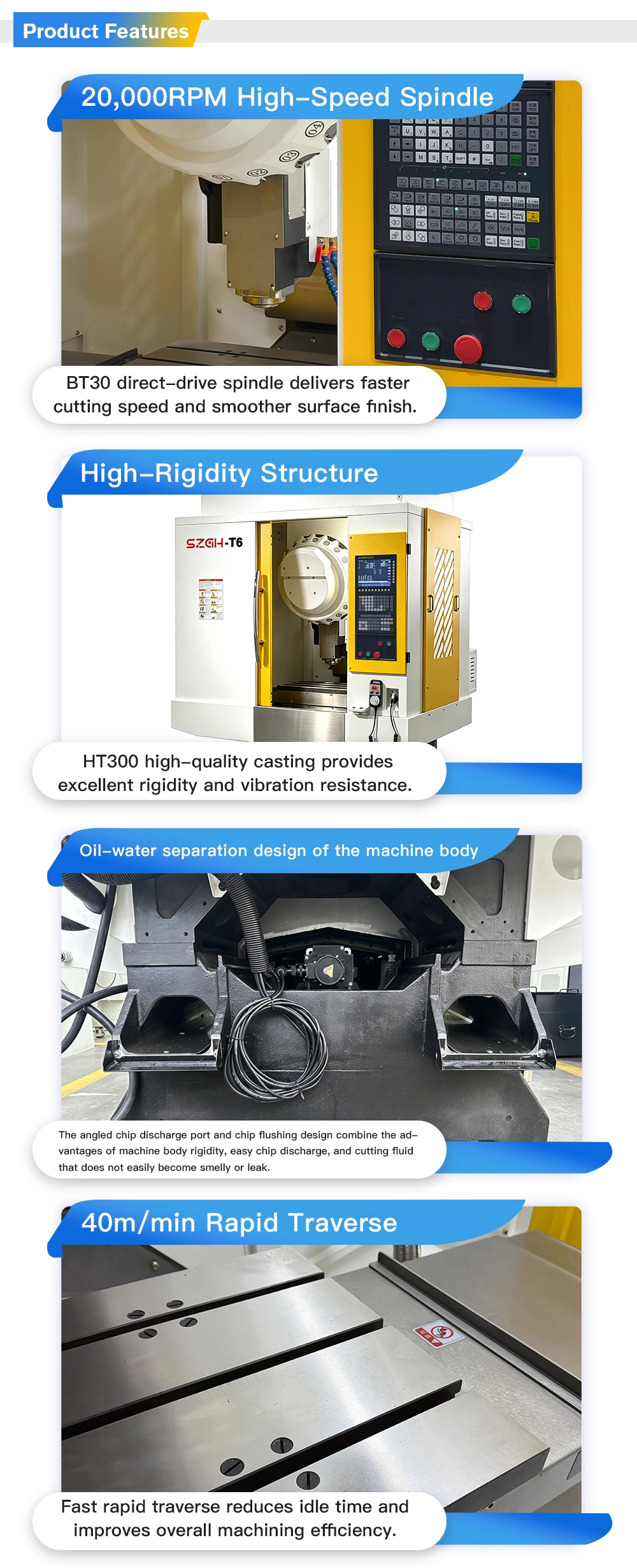

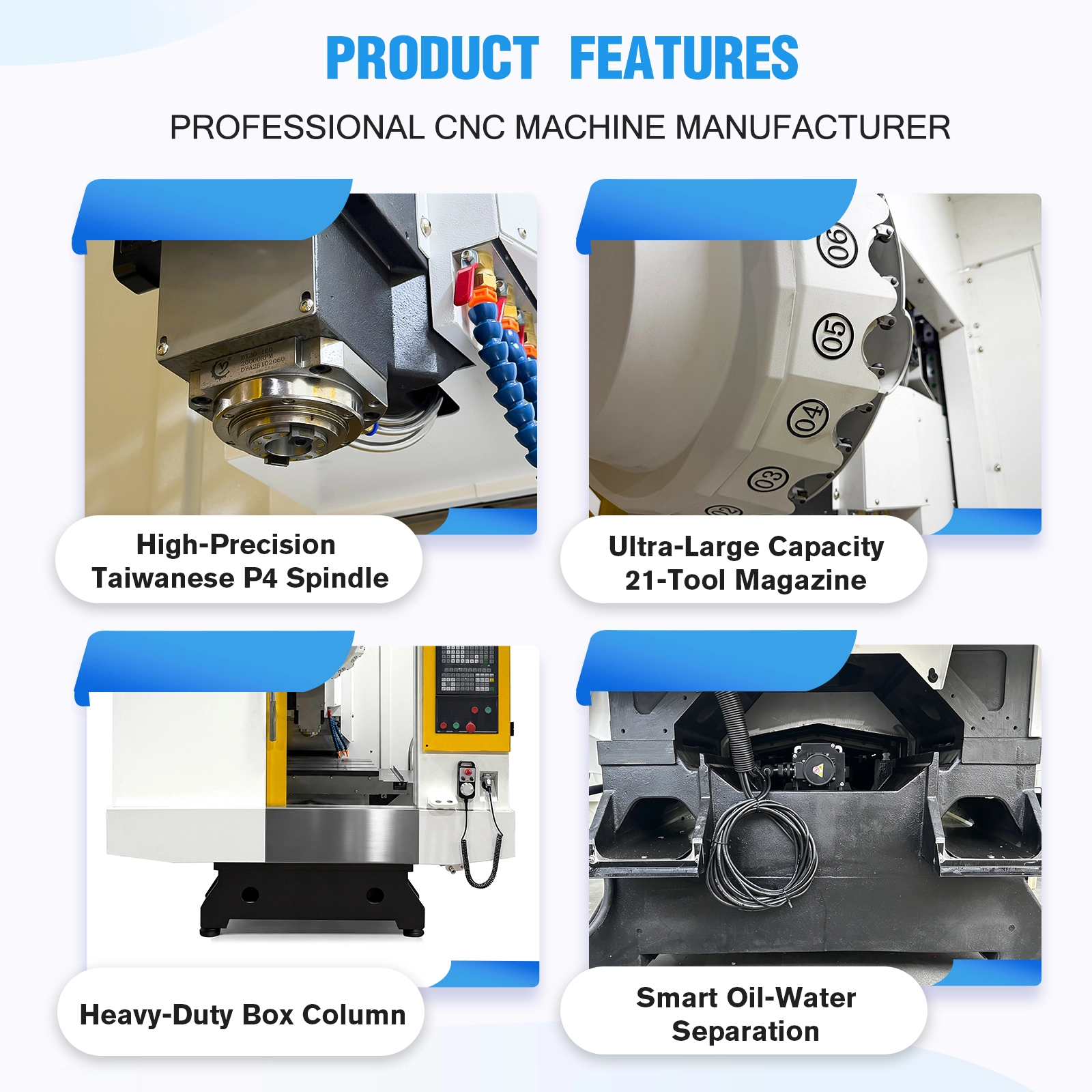

Product Advantages
🔧 1. High-Rigidity Structural Design
- GB300 high-grade resin-sand castings with tempering, vibration aging, and natural aging – completely eliminates internal stress, preventing deformation over time.
- Ultra-wide one-piece base, box-type column, and rib-reinforced headstock provide excellent torsional rigidity and heavy-cutting stability.
⚙️ 2. High-Precision Feed System
- All three axes use Taiwan HIWIN C3-grade precision ball screws (X/Y: R28-16, Z: R32-16) for guaranteed positioning and repeatability.
- Oversized Taiwan-made roller linear guides with multiple blocks per axis – high load capacity, smooth movement, and no stick-slip.
🔄 3. High-Speed & Stable Spindle

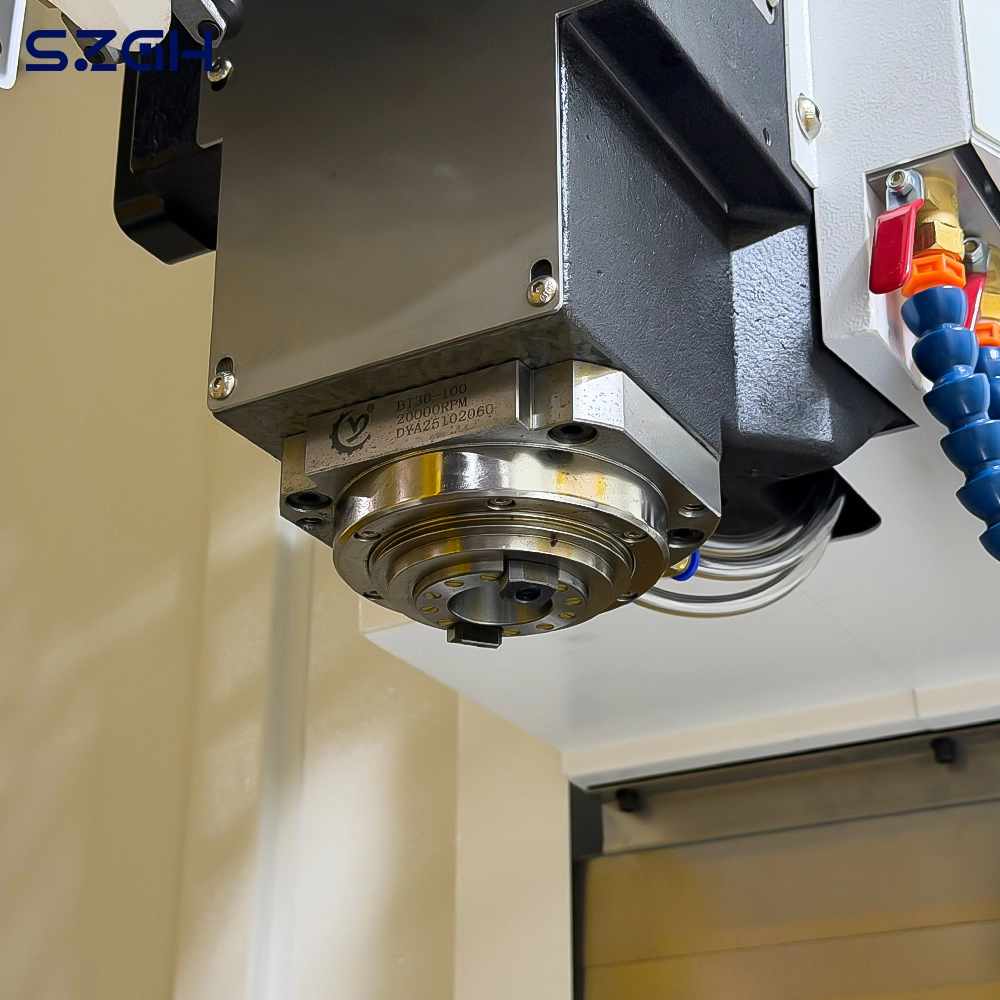

- Taiwan Dayue BT30 direct-drive spindle with a maximum speed of 20,000 rpm, providing stable operation and efficient machining performance.
🧹 4. Clean & User-Friendly Maintenance
- Integrated oil-water separation prevents coolant deterioration.
- Angled chip discharge and concealed piping design ensure smooth chip evacuation, eliminate leakage and contamination, and keep the machine clean and easy to maintain.
🔧 5. High-Efficiency Automatic Tool Changing

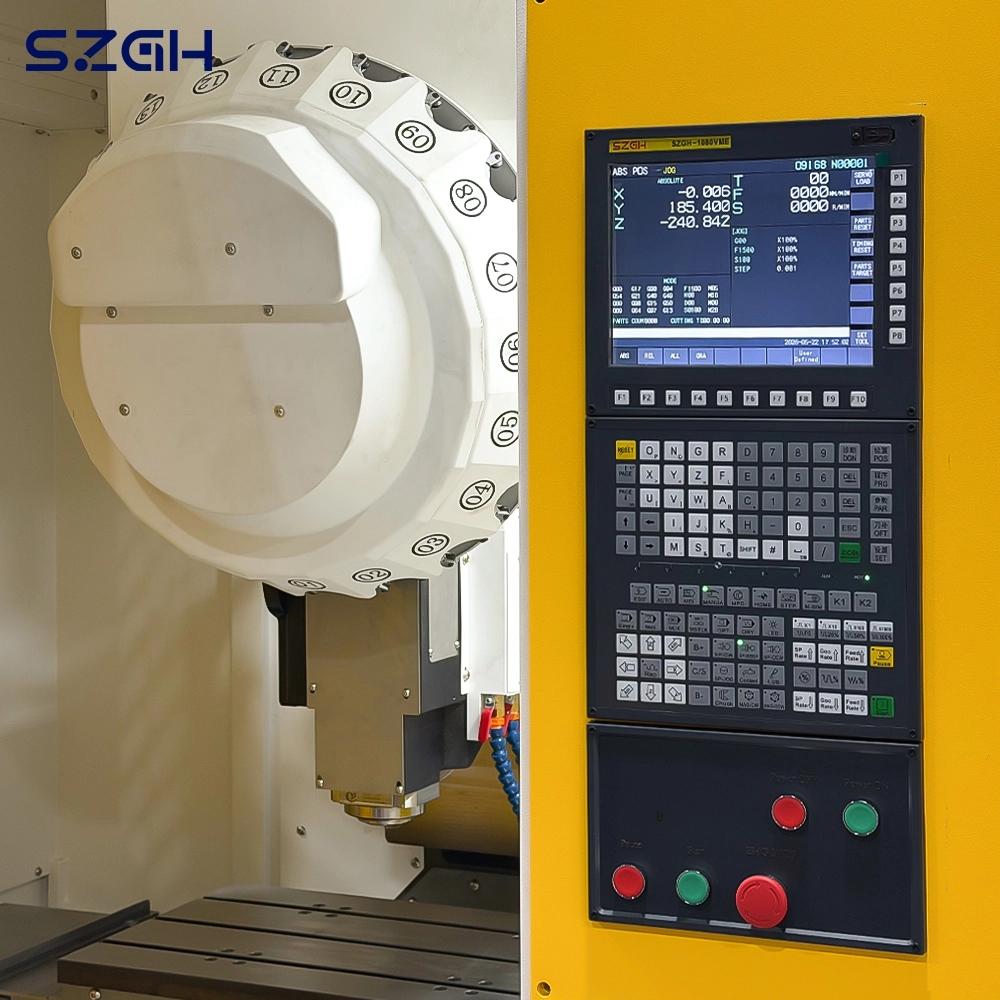

- Standard 21-station servo tool magazine (umbrella type) enables fast tool changes, high reliability, and improved machining cycle times.
🧊 6. Comprehensive Support Systems
- Centralized automatic lubrication system (positive displacement type), spindle air/oil cooling, and electrical cabinet cooling system ensure long-term continuous operation stability.
-
Premium electrical components (e.g., Japan AirTAC triple unit, France Schneider relays, etc.) enhance overall electrical reliability.
