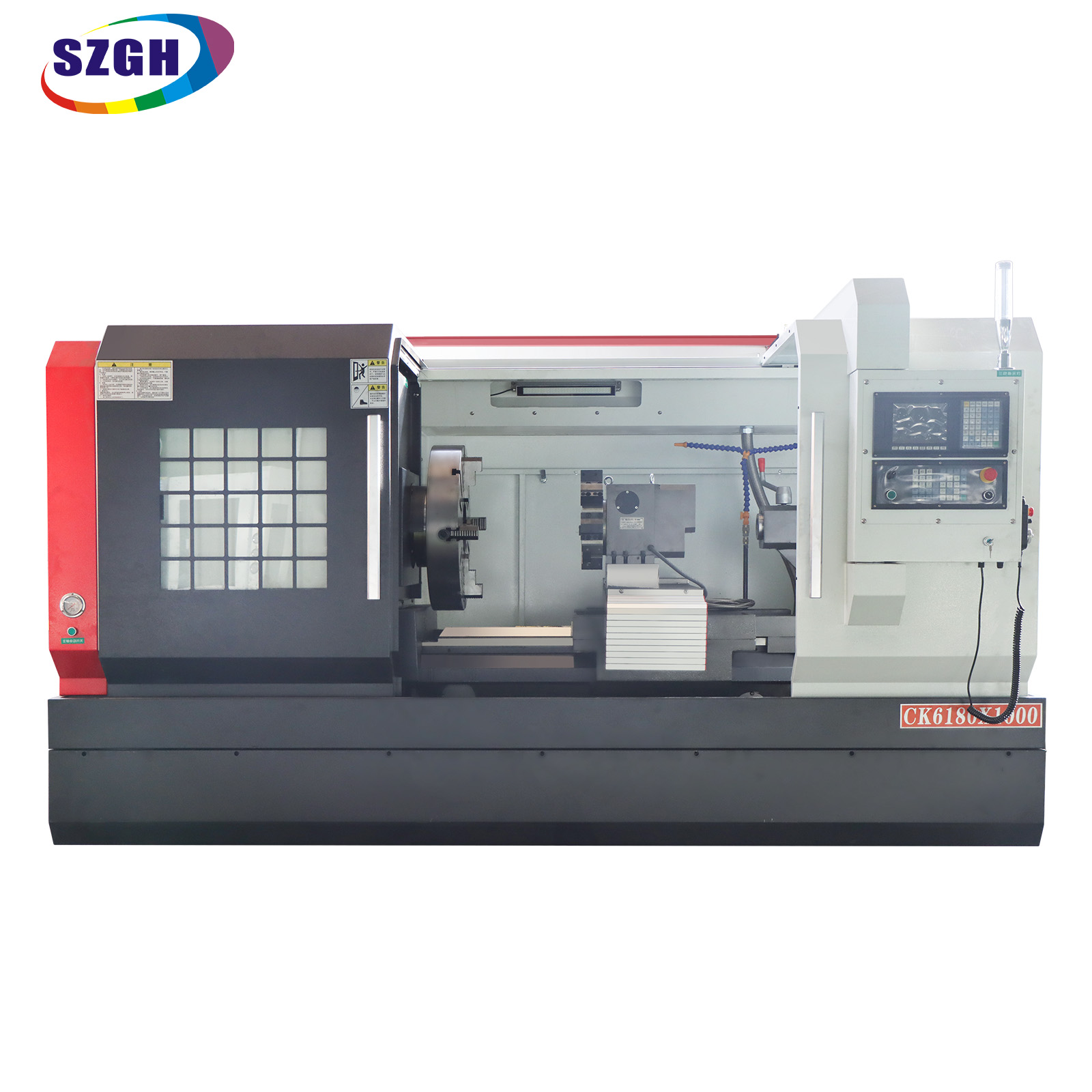

SZGH-6180 CNC Large lathe machine

Description:

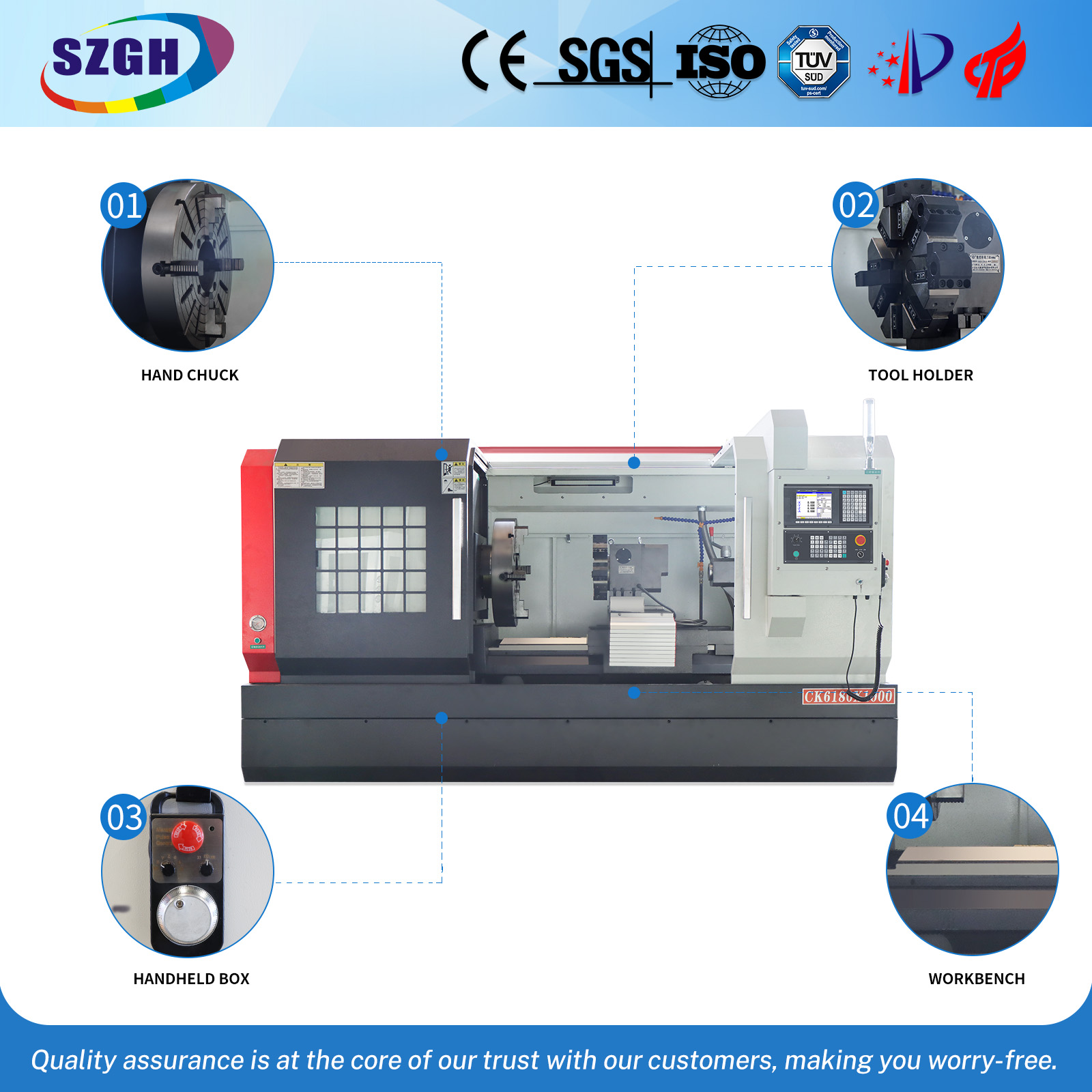

SZGH-6180 Benchtop cnc lathe seal making machine price made in China.Super audio quenching guide rail harder. Stand with : manual chuck. Optional : hydraulic pneumatic chuck or 4-jaw chuck.Standard with 4 staion.Electrie tool post 6/8 station electric tueert are optional.

  • Model : SZGH-6180
  • OEM : Available
  • Sample: support
  • Payment : 30% deposit, 70% balance before shipment (T/T or L/C accepted)
  • Place of Origin: ShenZhen China
  • Supply Ability : 500 units per month

Hotline

86-19928711953 ( Wechat & WhatsApp )



Max. swing dia. over bed                  Ф800mm
Max. swing dia. over cross slide       Ф450mm
Distance between centers            2850mm
Guideway width                               600mm
Spindle bore                                     130mm
Spindle speed steps                   VF.4steps 30-835
Chuck                                                500mm
Turret/tool post                          Electric 4 position
Tool size                                        25x25mm
X axis travel                                 400mm
