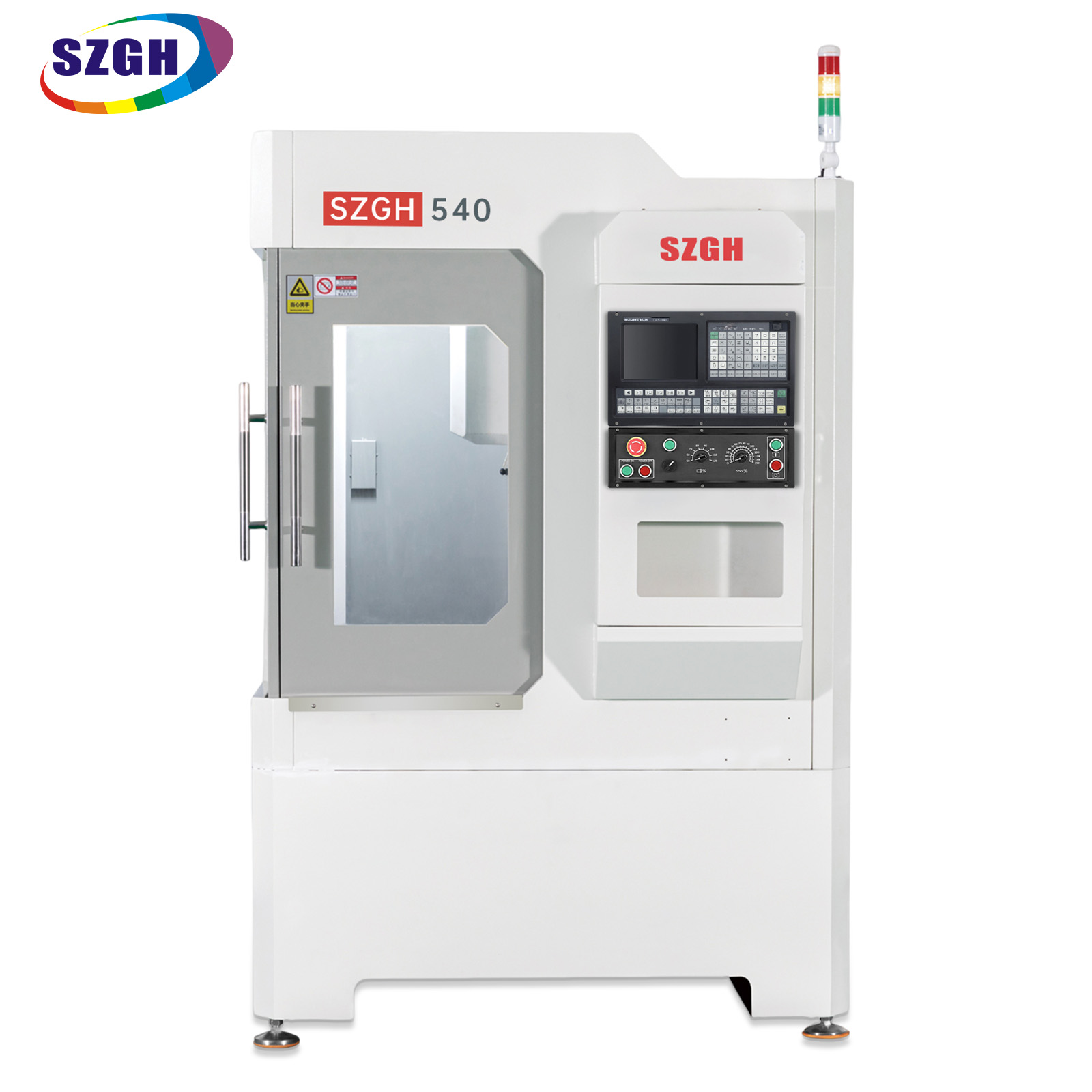

SZGH-540 CNC machine tools milling machines lathes
Description:
The CNC milling machine suitable for 8-station processing of copper, iron, aluminum and stainless steel workpiece within 500mmX400mm, and stainless steel parts processing within 8mm tapping and 10mm drilling.
- Model : SZGH-540
- OEM : Available
- Sample: Yes, sample production provided within 10-15 working days
- Payment : 30% deposit, 70% balance before shipment (T/T or L/C accepted)
- Place of Origin: ShenZhen China
- Supply Ability : 100 units/month, scalable based on demand
Hotline
86-19928711953 ( Wechat & WhatsApp )
configuration parameter：
product category | Product Parameter | ||
| Max. milling cutter diameter | Ф60-Ф100mm | ||
| Repeatability | 0.01mm | ||
| Surface engraving accuracy | +-0.06mm | ||
| X-axis effective travel | 400mm | ||
| X-axis rapid traverse | 25-35m/min | ||
| Y-axis effective travel | 500mm | ||
| Z-axis effective travel | 200mm | ||
| Y-axis rapid traverse | 25-35m/min | ||
Z-axis rapid traverse | 20-25m/min | ||
Various cutting suggested speeds | 8-10m/min | ||
Spindle taper | BT30 |
The CNC machine 's total weight is 1900kg,The weight is enough to support the anti-vibration and improve the accuracy and smoothness during bar machining.SZGH-540 Small cnc Milling machine's dimesions is 1350 x 1050 x 2050mm.

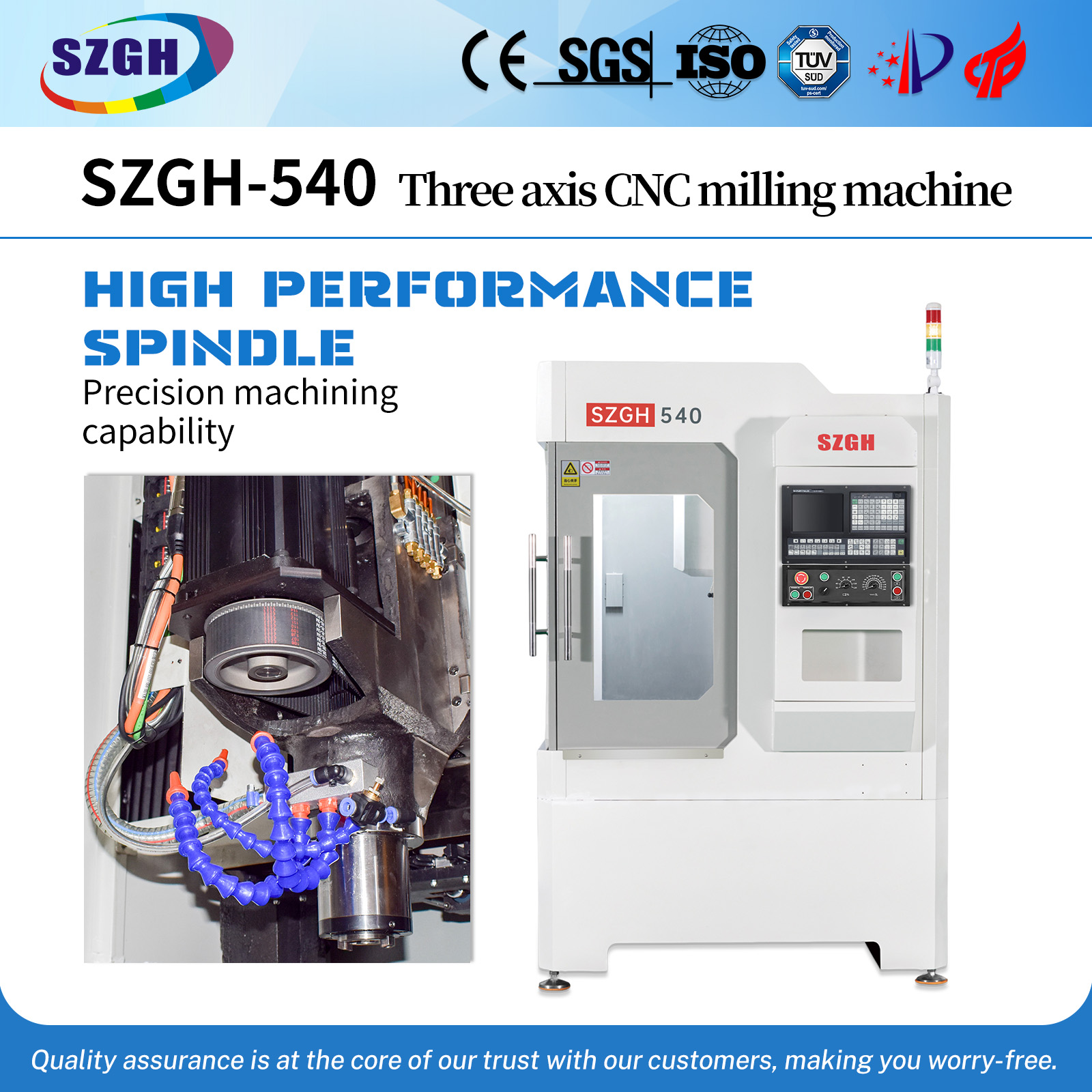

The SZGH-540 matching 2.6KW spindle motor and optinal 3.9-4.5KW.The cnc lathe machine typically requires a three-phase power input (380-440V, 50/60Hz) for the main motor and spindle drive.
![[Precision Manufacturing New Standard] SZGH 540 CNC Milling Machine display + processing](https://api.szghcnc.com/uploads/20250524/c91cb56c5001cbd073b960be8e710622.jpg)
