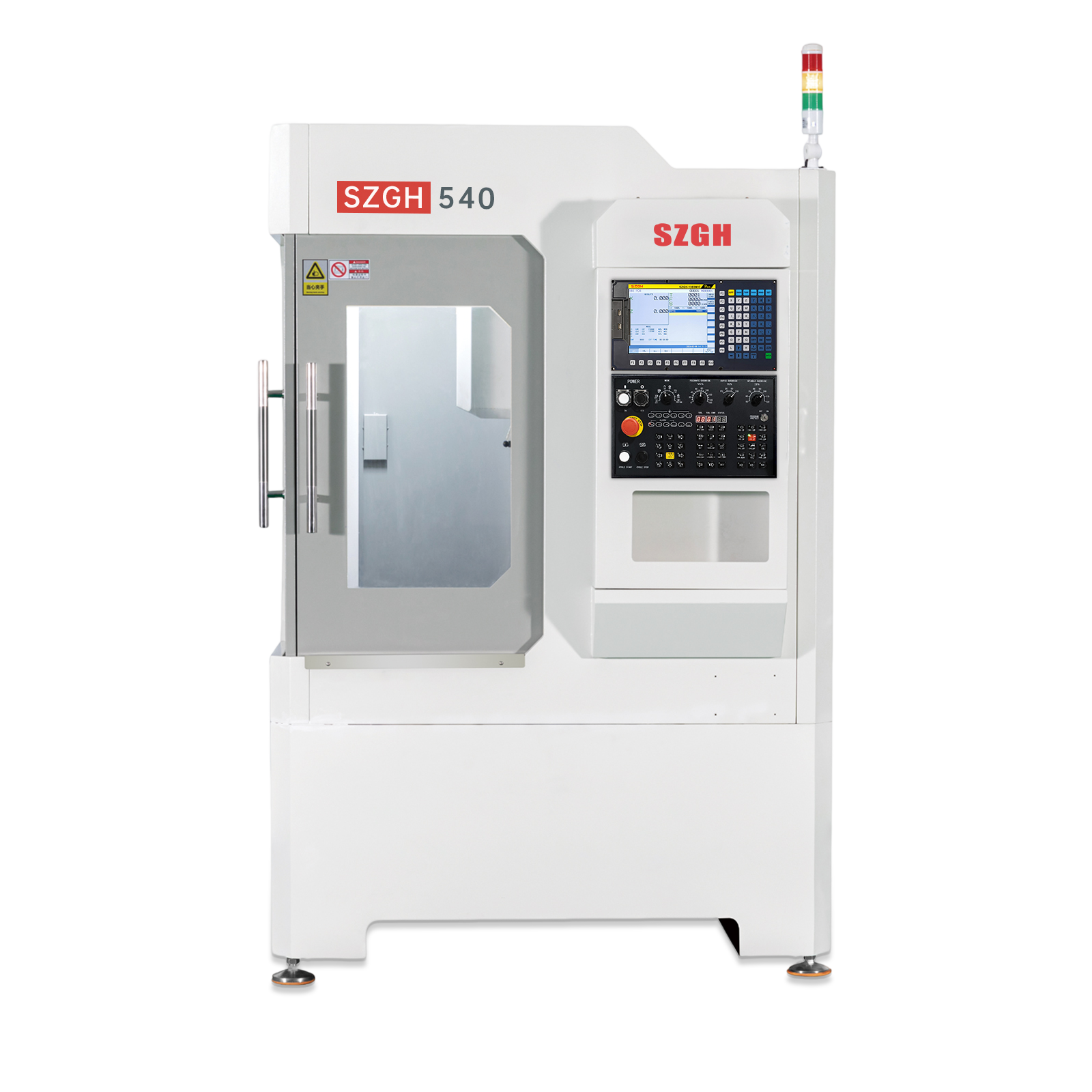

SZGH-540 CNC Milling Machine for Sale – High Precision 4-Axis Machining Solution

Description:

When you’re searching for a CNC milling machine for sale, reliability, precision, and efficiency are top priorities. The SZGH-540 CNC Milling Machine delivers exactly that. Built with advanced technology, robust mechanical design, and flexible configuration options, this 4-axis machining center is engineered for industries that demand accuracy and productivity—such as automotive parts, mold manufacturing, medical devices, and precision engineering.

  • Model : SZGH-540
  • OEM : Acceptable customization
  • Sample: Yes, sample production provided within 10-15 working days
  • Payment : 30% deposit, 70% balance before shipment (T/T or L/C accepted)
  • Place of Origin: ShenZhen China
  • Supply Ability : 100 units/month, scalable based on demand

Hotline

86-19928711953 ( Wechat & WhatsApp )

Why the SZGH-540 is the Best CNC Milling Machine for Sale

When you type “cnc milling machine for sale” or “cnc milling machines for sale” into Google, you’ll find many options—from entry-level machines to high-end 4-axis machining centers. What sets the SZGH-540 apart is its balance of affordability, quality, and capability.

Unlike hobby-grade CNCs, the SZGH-540 is a true industrial 4-axis CNC milling machine, capable of continuous operation, heavy-duty machining, and precise results. At the same time, it comes at a much lower investment cost compared to European or Japanese machines, making it the perfect solution for growing manufacturers.


Mechanical Specifications – SZGH-540 CNC Milling Machine

  • Workbench Size (W × L): 500 × 400 mm

  • Worktable Load Capacity: 200 kg

  • Travel (X / Y / Z): 400 mm / 500 mm / 200 mm

  • Spindle Speed: Up to 6000 rpm (JD-540)

  • Spindle Taper Hole: BT30

  • Tool Magazine Capacity: 8-tool servo carousel (BT30)

  • Max Drilling Diameter: Aluminum Ø15 mm / Steel Ø10 mm

  • Max Tapping Diameter: Steel M6 (1.5 kW), M10 (2.6 kW), M12 (3.0 kW)

  • Max Milling Cutter Diameter: Ø63 mm

  • Rapid Traverse Speed: X 30 m/min, Y 30 m/min, Z 25 m/min

  • Cutting Feed Speed: Up to 10,000 mm/min

  • Repeat Positioning Accuracy: 0.01 mm

  • Air Pressure Requirement: 4 kgf/cm²

  • Machine Power Consumption: 6 kW

  • Dimensions (L × W × H): 1300 × 1150 × 2030 mm

  • Machine Weight: Approx. 1900 ±5% kg


    Pplications of the SZGH-540 CNC Milling Machine

    The SZGH-540 is designed for precision machining across industries:

    Automotive Parts Manufacturing – engine blocks, gearbox housings, precision brackets.

    Mold and Die Making – aluminum molds, injection mold components, electrode machining.

    Medical Devices – surgical instruments, orthopedic parts requiring high precision.

    General Engineering – steel parts, fixtures, and high-precision prototypes.

    With its 4-axis capability, the SZGH-540 reduces setups and increases machining efficiency, making it ideal for small batch production and mass production alike.


    Customer Benefits

    • Faster ROI: Thanks to affordable pricing and high productivity.

    • Reduced Downtime: Reliable SZGH components and Taiwan ball screws ensure long life.

    • Global Compatibility: G-code programming means compatibility with CAM software worldwide.

    • Operator Friendly: Easy-to-use control systems, USB transfer, and ergonomic design.

    • After-Sales Support: SZGH provides installation guidance, training, and spare parts supply.
