SZGH-36J High-Precision Small Slant Bed CNC Lathe Machine for Metal Turning

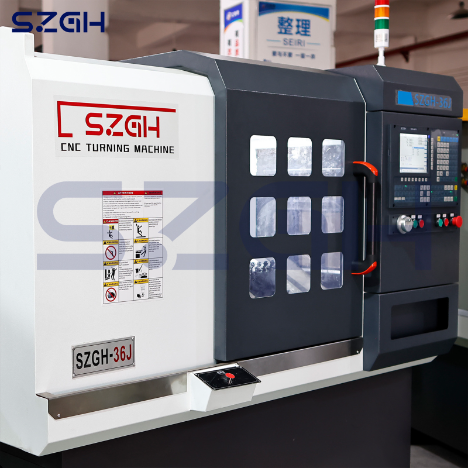

Shenzhen Guanhong Automation Co,. Ltd. (SZGH) is a globally recognized expert in CNC systems, intelligent automation, and high-efficiency CNC machine tools. Leveraging decades of experience in motion control, servo drives, and machine tool engineering, SZGH introduces the SZGH-36J 2-Axis CNC Lathe—a compact, high-precision solution designed for modern CNC lathe machining and next-generation Automation Lathes.

Key Advantages:

• 30° Slant Bed Design: Provides superior rigidity and excellent chip removal, ensuring a cleaner workspace and longer tool life.
• Unified SZGH Control System: Equipped with our self-developed SZGH-880TC controller (Cortex-A8 + FPGA), offering 0.1μm control accuracy and a user-friendly interface.
• High-Speed & Balanced Spindle: Dynamically balanced spindle reaching up to 4000 RPM, ensuring high surface finish quality and precision.
• Modular Configurations: Supports optional flying cutters, Y-axis power heads, and 5-axis linkage for complex turn-mill compound processing.
• Premium Components: Key parts adopt high-quality wear-resistant configurations from top-tier brands (e.g., Taiwan HIWIN/PMI), ensuring long-term durability.
•


• Project

  Unit

  	Standard value	Max value
  Processing Capacity	Max.diameter of bar bore		mm	35	-
  	Max.particle diameter(disk type)		mm	250	300
  	Max.length of workpiece		mm	210	230
  	Cutting amount of stainless steel on one side		mm	2	3
  	Machining accuracy of the workpiece		mm	±0.01	-
  	Surface roughness		Ra	1.6	-
  	the height of center tool holder		mm	40	-
  	Turning Diameter		mm	350	-
  	Square Knife Specifications		mm	16	-
  Travels	X-axis effective travel		mm	600	-
  	Z-axis effective travel		mm	230	-
  Feed	X-axis rapid traverse		m/min	25	30
  	Z-axis rapid traverse		m/min	25	30
  	X-axis servo-motor power		kW	1.2	-
  	Z-axis servo-motor power		kW	1.2
  Spindle	Max.Spindle Speed		rpm	3500	4000
  	Spindle Motor Power		kW	4	-
  	Spindle nose taper		-	A2-4	-
  	Support hydraulic chuck size		inch	6	8
  Dimensions	Dimensions		mm	1750×1400×1800	-
  	Total Weight		kg	1800	-

Precision Manufacturing: Mechanical Design for Exceptional Stability

The SZGH-36J 2-Axis CNC Lathe is constructed from heavy-duty, deformation-resistant, high-strength cast iron and features a 30° slant-bed structure. This design effectively absorbs cutting forces, minimizes vibration, and improves chip evacuation—key factors in maintaining stable CNC lathe machining performance during long, continuous production cycles.

The machine frame is precision-milled and dynamically balanced to ensure structural stability even under demanding cutting conditions. This allows the SZGH-36J to maintain tight tolerances across batches, which is essential for manufacturers producing high-precision components.

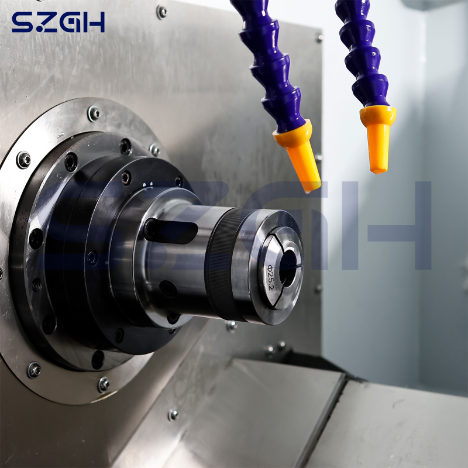

The spindle is driven by a 4 kW variable-frequency servo motor, delivering rapid acceleration, stable torque, and smooth speed transitions. Supported by high-precision angular contact bearings, the spindle achieves excellent rotational accuracy and surface finishes of Ra ≤ 1.6 μm, making this 2-Axis CNC Lathe ideal for industries such as electronics, medical devices, and precision hardware.

Optimized Axis System for High-Efficiency CNC Lathe Machining

The X and Z axes of the SZGH-36J 2-Axis CNC Lathe utilize 25 mm precision ball screws paired with high-rigidity linear guideways. This configuration ensures backlash-free motion, high repeatability, and long-term positioning accuracy—core requirements for reliable CNC lathe machining.

X-axis travel: 600 mm

Z-axis travel: 230 mm

Rapid feed rate: Up to 30 m/min

These specifications enable the 2-Axis CNC Lathe to efficiently machine a wide variety of parts, from prototyping to medium- and high-volume production.

To further enhance machining stability, the machine incorporates an optimized thermal management design, including heat-dissipating castings and thermally stable guideways. This prevents thermal drift and ensures consistent accuracy during extended machining operations—an essential factor for sustainable Automation Lathes production.

Advanced CNC System Enabling Intelligent Automation Lathes

The SZGH-36J features a CNC system independently developed by SZGH and proven through years of industrial application. The controller provides high-speed interpolation, precise servo synchronization, and adaptive feed control, ensuring smooth execution of complex programs while maintaining accuracy and surface quality in CNC lathe machining.

Operators benefit from:

Intuitive graphical user interface

Fast and easy programming

Real-time machine monitoring

RS232 and Ethernet communication support

These features allow the SZGH-36J 2-Axis CNC Lathe to integrate seamlessly into smart factories and digitally connected production lines, supporting Industry 4.0 framework and advanced Automation Lathes workflows.

A handheld controller and modular I/O panel further enhance setup efficiency, simplifying manual alignment, tool setting, and part inspection—especially valuable for small-batch and mixed-production environments.

High Productivity, Automation-Ready Design

Designed for continuous automated production, the SZGH-36J 2-Axis CNC Lathe supports multiple automation options, including:

Hydraulic chuck system for fast and secure clamping

Optional automatic bar feeder for unattended operation

Bar machining capacity up to 35 mm

Maximum turning diameter up to 250 mm

Integrated chip removal and coolant circulation systems maintain a clean and thermally stable working environment, reducing downtime and improving overall CNC lathe machining efficiency,efficiently cools the tool and workpiece during machining, effectively reducing thermal deformation, improving surface quality, and extending tool life.

Machinable Materials and Application Industries

The SZGH-36J 2-Axis CNC Lathe is optimized for machining a wide range of materials, including:

Aluminum and aluminum alloys

Copper and brass

Carbon steel and alloy steel

Stainless steel

Engineering plastics

Typical applications include:

Automotive shafts and bushings

Hydraulic and pneumatic fittings

Electronic and connector components

Precision fasteners and small mechanical parts

The machine is widely used in automotive, electronics, aerospace sub-component manufacturing, medical devices, and general machinery industries, delivering stable accuracy and high productivity through advanced CNC lathe machining

Reliable Global After-Sales Support

Each SZGH-36J 2-Axis CNC Lathe is supported by comprehensive after-sales service to ensure long-term operational stability:

Pre-installation consultation and layout planning

Installation and commissioning support

CNC lathe machining training for operators

Remote diagnostics and technical assistance

Spare parts supply and maintenance guidance

This ensures customers receive not only a high-performance 2-Axis CNC Lathe, but also a dependable long-term Automation Lathes solution.

Why Choose the SZGH-36J 2-Axis CNC Lathe

In a global market alongside brands such as Okuma, Fanuc, Siemens, Haas, and SMTCL, the SZGH-36J stands out for its balance of performance, automation readiness, and cost efficiency.

It offers:

Stable and precise CNC lathe machining

Flexible production for single-piece and batch processing

Seamless integration into Automation Lathes systems

Excellent return on investment for modern manufacturers

Contact SZGH today for detailed specifications, pricing, or customized Automation Lathes solutions built around the SZGH-36J 2-Axis CNC Lathe.
