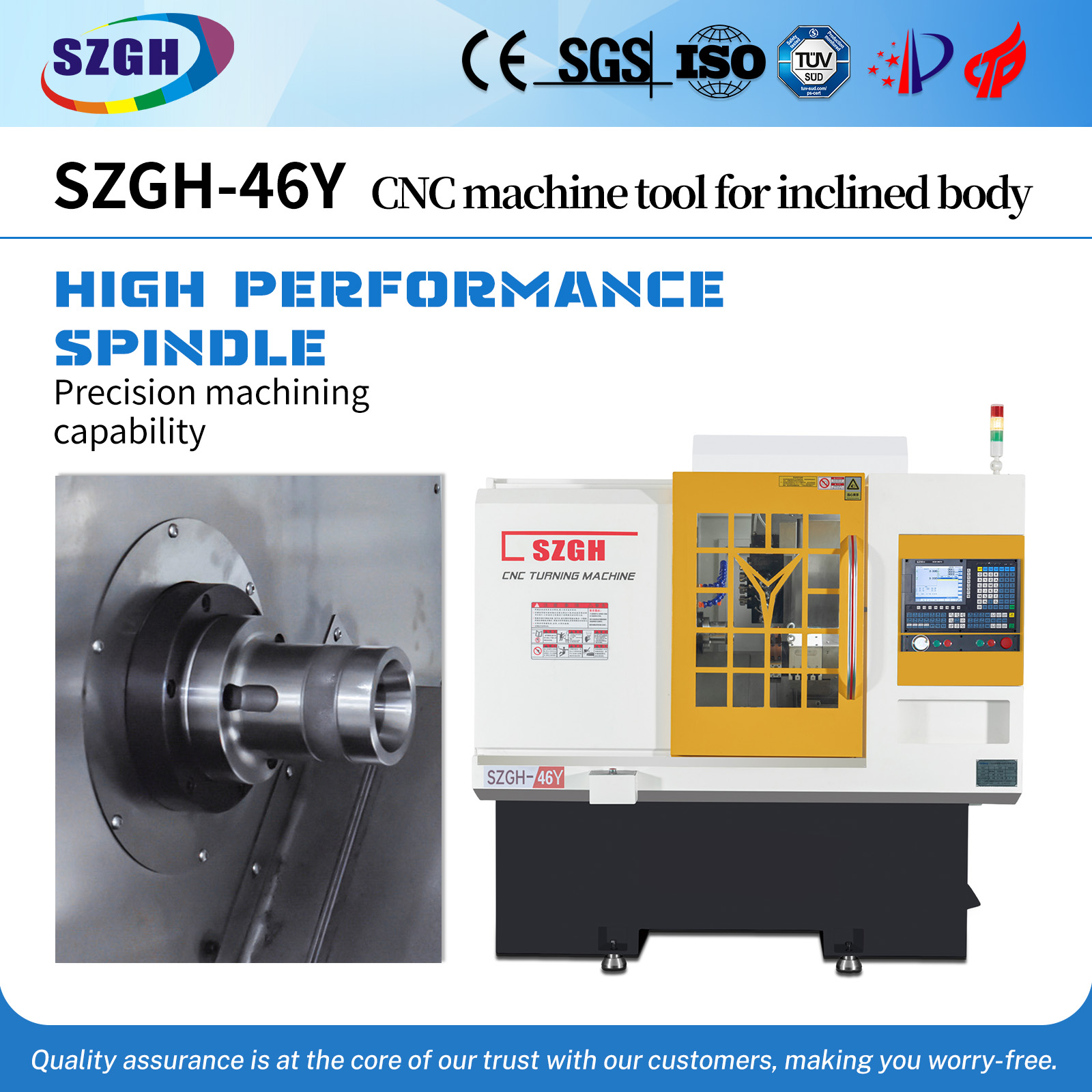

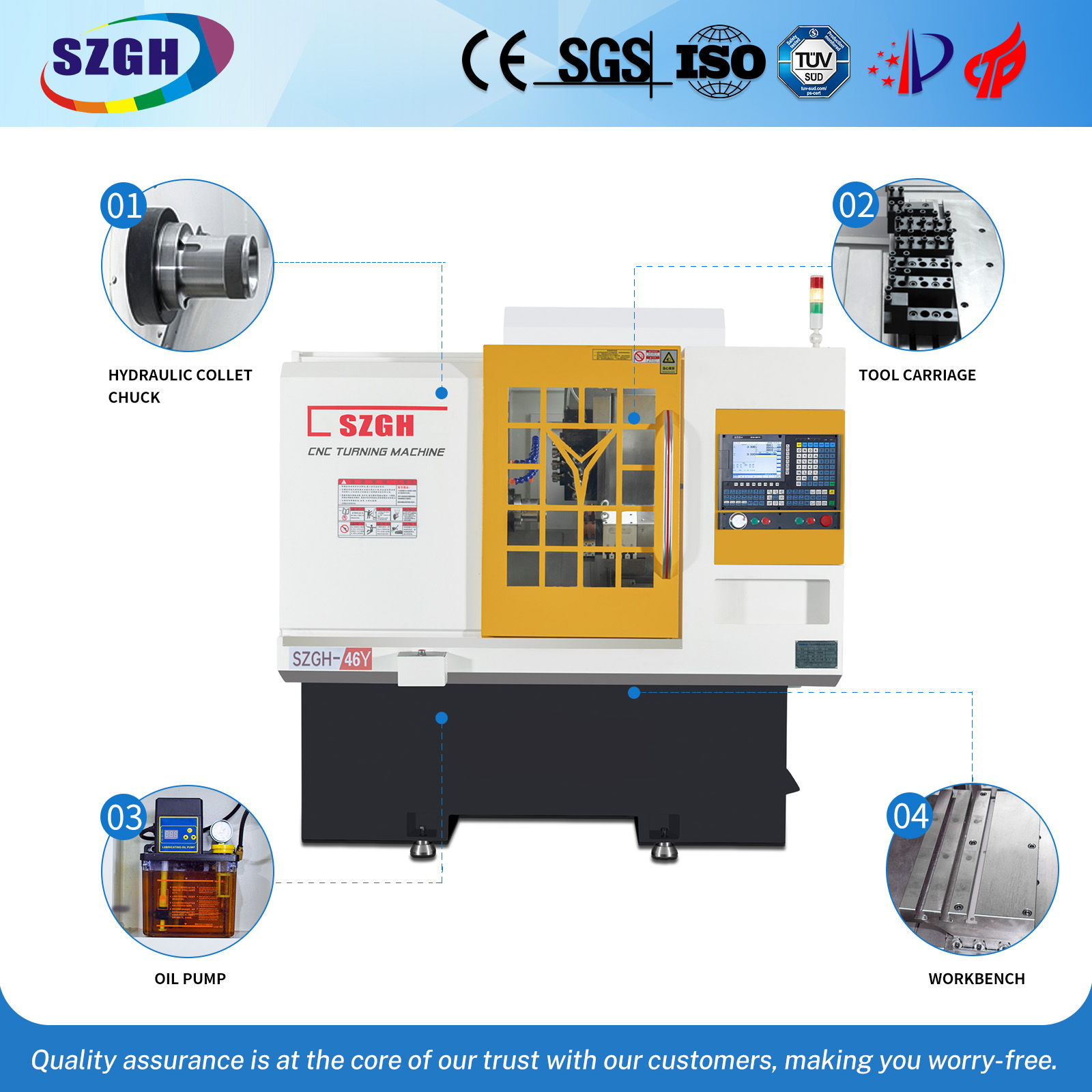

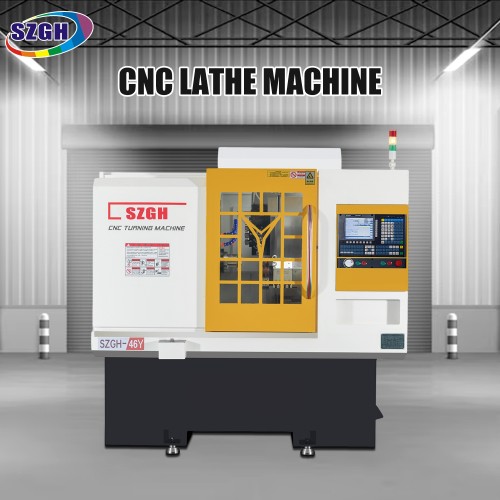

SZGH-46Y axis High-efficiency lathe processing center
Description:
The SZGH-46Y on the basis of SZGH-46 CNC lathe, Y-axis 4+4 power head and 8-station servo turret are installed to realize the combined function of turning and milling with 8 tool ends 4+side 4.It is widely used in the processing of workpieces that require drilling, tapping, milling, etc. on the side and end faces.
- Model : SZGH-46Y
- OEM : Available
- Sample: Yes, sample production provided within 10-15 working days
- Payment : 30% deposit, 70% balance before shipment (T/T or L/C accepted)
- Place of Origin: ShenZhen China
- Supply Ability : 100 units/month, scalable based on demand
Hotline
86-19928711953 ( Wechat & WhatsApp )
configuration parameter：
product category | Product Parameter | ||
| X-axis effective travel | 1000mm | ||
| Max. diameter of bar bore | 45mm | ||
| Max. length of workpiece | 210mm | ||
| Turning Diameter | 420mm | ||
| Y-axis rapid traverse speed | 15m/min | ||
| X-axis servo-motor power | 1.5KW | ||
| Max. length of workpiece | 380-400mm | ||
| Y-axis mode | side 4+ end 4 power
head | ||
Y-axis power head clamping type | ER25 | ||
Max. particle diameter (disk type) | 400mm | ||
the height of center tool holder | 50mm |
His dimension size is 2100 x 1500 x 1900mm,and the total weight is 2800kg.
The CNC 46Y Lathe machine typically requires a three-phase power input (380-440V, 50/60Hz) for the main motor and spindle drive.At the same time adopting SZGH electric control package to make electromechanical cooperation play the best efficiency.The spindle motor power it matches is 5.5KW-7.5KW.
