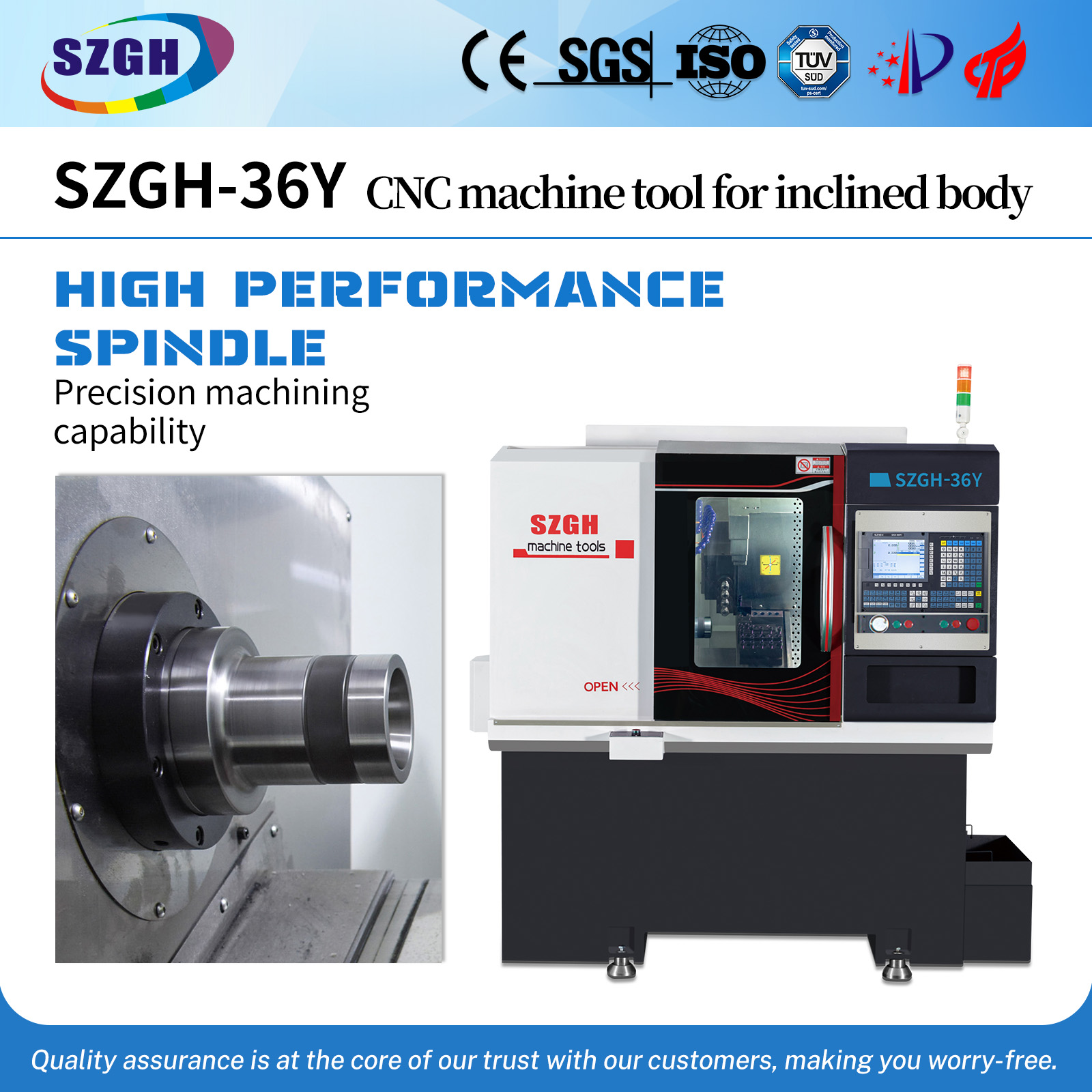

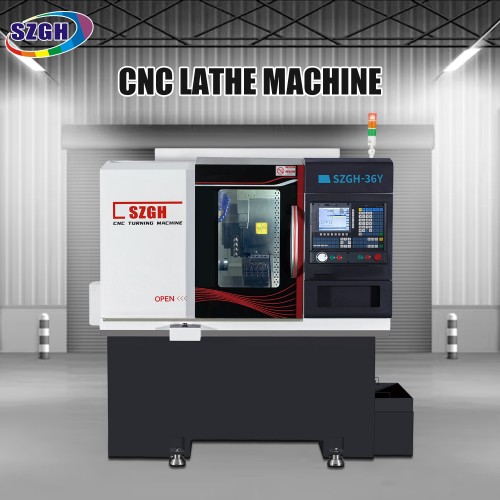

CNC SZGH 36-Y axis multifunctional turning and milling machine
Description:
CNC-SZGH-36Y On the basis of the SZGH-36 CNC lathe, 4 power heads on the Y-axis side are installed to realize the turning milling compound function of 6 rows of cutters and 4 side milling, which is widely used in the processing of workpieces that require drilling, tapping, and slotting on the side.
- Model : SZGH-36Y
- OEM : (Custom branding and specifications supported)
- Sample: Yes, sample production provided within 10-15 working days
- Payment : 30% deposit, 70% balance before shipment (T/T or L/C accepted)
- Place of Origin: ShenZhen China
- Supply Ability : 100 units/month, scalable based on demand
Hotline
86-19928711953 ( Wechat & WhatsApp )
configuration parameter：
product category | Product Parameter | ||
| X-axis effective travel | 600 mm | ||
| Max. diameter of bar bore | 35mm | ||
| Max. length of workpiece | 210mm | ||
| Turning Diameter | 350mm | ||
| X-axis rapid traverse | 25m/min | ||
| X-axis servo-motor power | 1.3KW | ||
| Max.Spindle Speed | 3500rpm | ||
Y-axis mode | side 4 power head | ||
Guide rail | 25mm | ||
Square Knife Specifications | 16mm | ||
the height of center tool holder | 40mm |
The electrical connections of a CNC Lathe Machine involve power supply, control systems, and peripheral devices. The cnc lathe machine typically requires a three-phase power input (380-440V, 50/60Hz) for the main motor and spindle drive. The control panel connects to the CNC system, servo motors, and encoders for precise motion control. Additional connections include coolant pumps, lighting, and safety interlocks.
