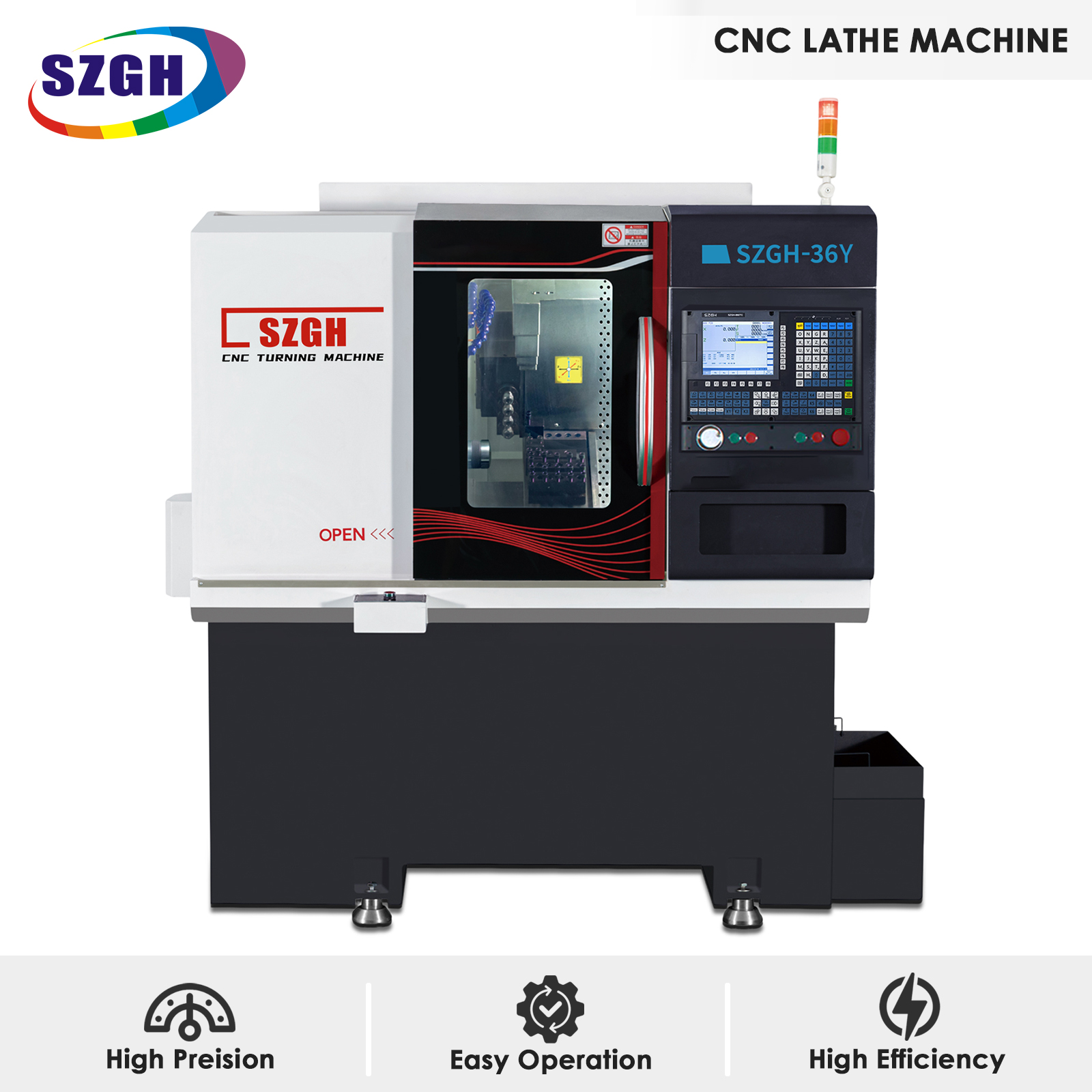

SZGH-36Y CNC Lathe — Precision,Speed,Reliability

Why  buyers choose the SZGH-36Y CNC Machine Tools?

The SZGH-36Y is a compact but powerful CNC computer numerical control machine built for accuracy, uptime, and simple integration into automated lines. Designed by experienced CNC lathe manufacturers (SZGH), it’s ideal for precision turning, small-part batch production, and demanding tolerances.

Purpose-built for real production: rugged 45° tilted bed and heavy, deformation-resistant base keep accuracy stable under continuous use.

Fast, accurate machining: hardened linear guides, precision ground ball screws, and high-response servos ensure repeatable positions within ±0.01 mm.

Easy programming & operation: SZGH-880TC controller with full G-code support speeds setup and reduces cycle-time.

Flexible tooling: modular turret, ER25/ER20 chuck options, and optional Y-axis/power head for complex features expand capability beyond ordinary lathes.

Automation ready: efficient chip removal, coolant system, and options for bar feeders or robotic tending make this unit a true production partner.

Key technical highlights

Through-hole diameter: Ø36 mm

Max swing: Ø350 mm | Machining length: 230 mm

X / Z travel: X 700 mm, Z 230 mm | Tool center: 40 mm

Spindle motor: 3 kW (high torque for heavy cuts) | Spindle speed: up to ~3,500–4,000 rpm

Axis drives: 1.2 kW servos | Repeatability: ±0.01 mm | Surface finish: Ra ≈ 1.6

Tooling: supports square tools up to 16 mm | Hydraulic chuck standard; ER chucks available

Controller: KT830Ti (G-code) — operator-friendly and reliable

Applications

Perfect for automotive components, fasteners, electronic connectors, fluid control parts, and any small-to-medium batch machining where precision and throughput matter.

Service & reliability

SZGH backs the machine with factory testing, installation support, operator training, and one-year warranty with lifetime technical assistance. Spare parts and responsive service networks simplify long-term ownership.

If you’re evaluating CNC lathe machining solutions, the SZGH-36Y offers an excellent balance of price, precision, and production capability. Contact SZGH for a quote, video demo, or to schedule a live trial — we’ll help match the machine to your part mix and automation plan.
