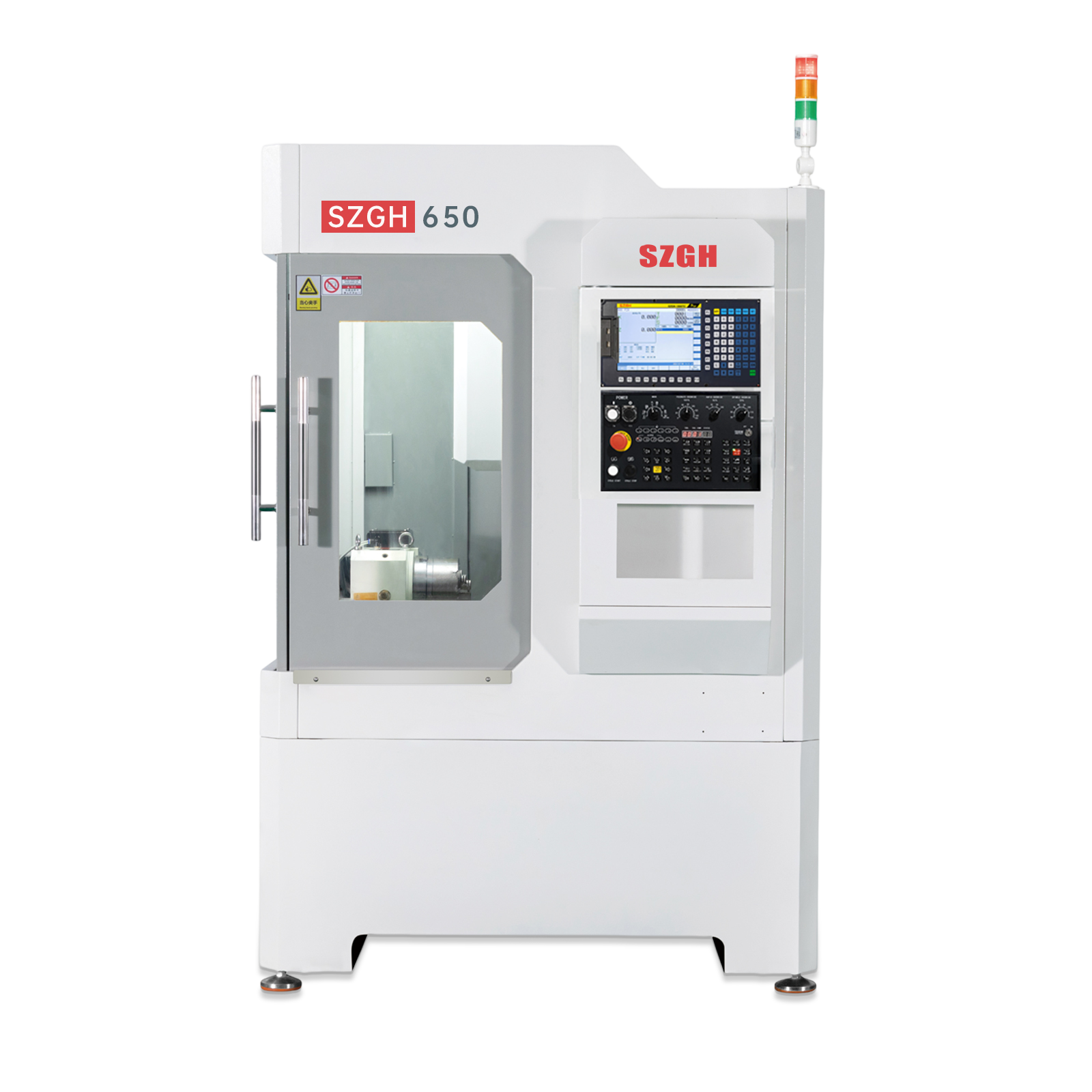

Introducing the SZGH-650B/SZGH-650D CNC Milling Machine – Your Ultimate Solution for Precision Manufacturing
Description:
Welcome to the future of CNC milling with the SZGH-650B and SZGH-650D, two cutting-edge machines designed to meet the demands of modern manufacturing. Engineered by SZGH, a trusted name in precision machinery, these CNC milling machines combine advanced technology, robust construction, and versatile configurations to deliver exceptional results for industries worldwide. Whether you're crafting intricate components or tackling high-volume production, the SZGH-650B and SZGH-650D are your ultimate partners in achieving precision and efficiency.
- Model : SZGH-650
- OEM : SZGH
- Sample: Yes, sample production provided within 10-15 working days
- Payment : 30% deposit, 70% balance before shipment (T/T or L/C accepted)
- Place of Origin: ShenZhen China
- Supply Ability : 100 units/month, scalable based on demand
Hotline
86-19928711953 ( Wechat & WhatsApp )
Unmatched Features for Superior Performance
1. Advanced SZGH CNC System
Both the SZGH-650B and SZGH-650D are equipped with the state-of-the-art SZGH CNC system, offering seamless compatibility with G-code programming. This intuitive system ensures precise control, easy operation, and adaptability to a wide range of machining tasks, making it ideal for both seasoned professionals and newcomers to CNC technology.
2. High-Performance Spindles
SZGH-650B: Features a robust mechanical spindle with a maximum speed of 6,000 RPM and a powerful 5.5kW motor. Perfect for heavy-duty milling tasks, it delivers reliable performance for materials like steel and other tough alloys.
SZGH-650D: Boasts a high-speed variable frequency electric spindle reaching up to 24,000 RPM with a 7.5kW motor. Designed for precision machining of softer materials like aluminum, it excels in high-speed applications requiring fine detail.
3. Precision Engineering
Both models feature Taiwan-manufactured precision components, including P-grade ball screws (diameter 32mm) and C3-grade guide rails (model 30). These ensure exceptional repeat positioning accuracy of 0.01mm, guaranteeing consistent quality across every project.
4. Robust Workbench
With a spacious 600x500mm workbench capable of supporting up to 250kg, these machines provide ample space and stability for a variety of workpieces. The Z-axis travel of 300mm (150mm minimum to 450mm maximum from the spindle end face) offers flexibility for diverse machining needs.
5. Efficient Tool Management
SZGH-650B: Equipped with a 10-station servo tool magazine and BT40 tool holder, ideal for heavy-duty drilling (up to Ø35mm) and tapping (up to M16/M20).
SZGH-650D: Features a 12-station servo tool magazine with a BT30 tool holder, optimized for high-speed milling (up to Ø50mm) and tapping (aluminum M10, steel M6).
6. Rapid and Reliable Movement
Both machines deliver fast-moving speeds of 30m/min on the X and Y axes and 25m/min on the Z-axis, with a cutting feed speed of up to 10,000mm/min. This ensures swift production cycles without compromising accuracy.
7. Durable and User-Friendly Design
The SZGH-650B and SZGH-650D CNC milling come with a fully sealed protective cover, guide rail protection, and an automatic intermittent lubrication system to minimize wear and maintenance. A built-in work light and USB interface enhance usability, while adjustment pads and bolts ensure easy setup and stability.
Comprehensive Support and Optional Upgrades
Our commitment to customer satisfaction includes optional features like tool setting probes, round tailstocks, and four-axis rotary tables, allowing customization according to your specific manufacturing requirements.
We also provide comprehensive after-sales support and technical assistance to ensure your success with our CNC milling solutions.
SZGH-650B and SZGH-650D CNC milling Built for Global Standards
Operating at 380V with a maximum power of 10kW (SZGH-650B) or 14kW (SZGH-650D), these machines are designed to meet international manufacturing requirements. The 5kgf/cm² air pressure ensures consistent performance in demanding environments.
Why Choose SZGH-650B/650D CNC Milling Machines?
Precision-driven engineering to meet tight tolerances
High-speed, high-power spindles for versatile machining
Advanced CNC control for flexible programming and operation
Robust mechanical design for durability and stability
Optional accessories to expand functionalities
SZGH-650B/SZGH-650D CNC milling machine Cost-effective investment with high productivity
Partner with us today and elevate your manufacturing capabilities with the SZGH-650B/SZGH-650D CNC milling machine. Perfectly suited for small to medium-sized production runs, prototypes, and custom machining, this machine is your gateway to achieving outstanding results with maximum efficiency.
Contact us now for a detailed quote, technical specifications, or to arrange a demonstration.Discover why manufacturers worldwide trust SZGH CNC machines for their precision machining needs.
Let us help you turn your ideas into reality with our innovative CNC solutions!
Feel free to reach out for more information or to request a personalized consultation.
We are committed to supporting your manufacturing success with reliableality CNC machinery.
Durability and User-Friendly Design
With a total dimension of approximately 165018002450mm and a weight of around 2900kg, these machines are built to last in demanding workshop environments. The fully enclosed protective covers and guide rail shields enhance safety and cleanliness, ensuring the longevity of your investment.
