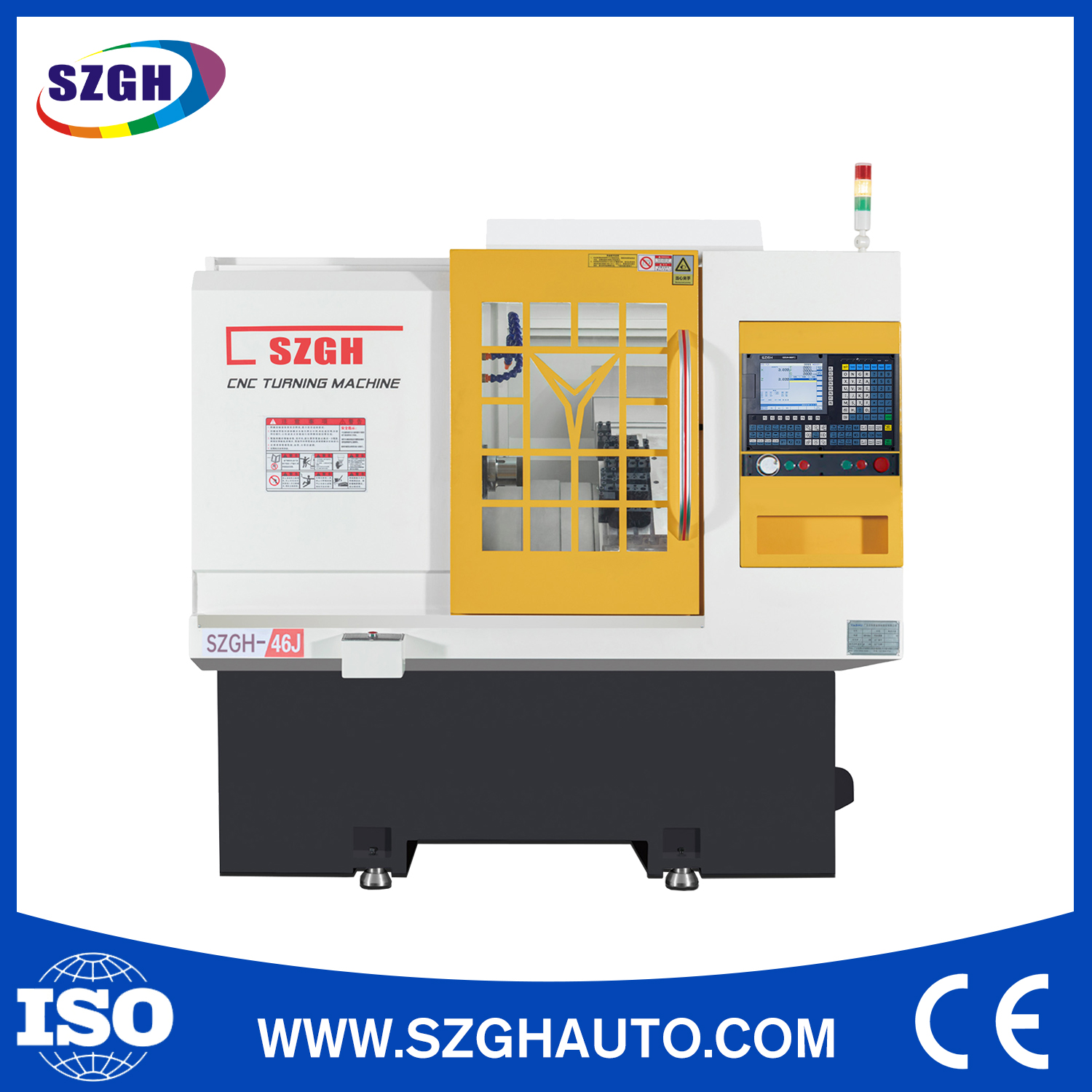

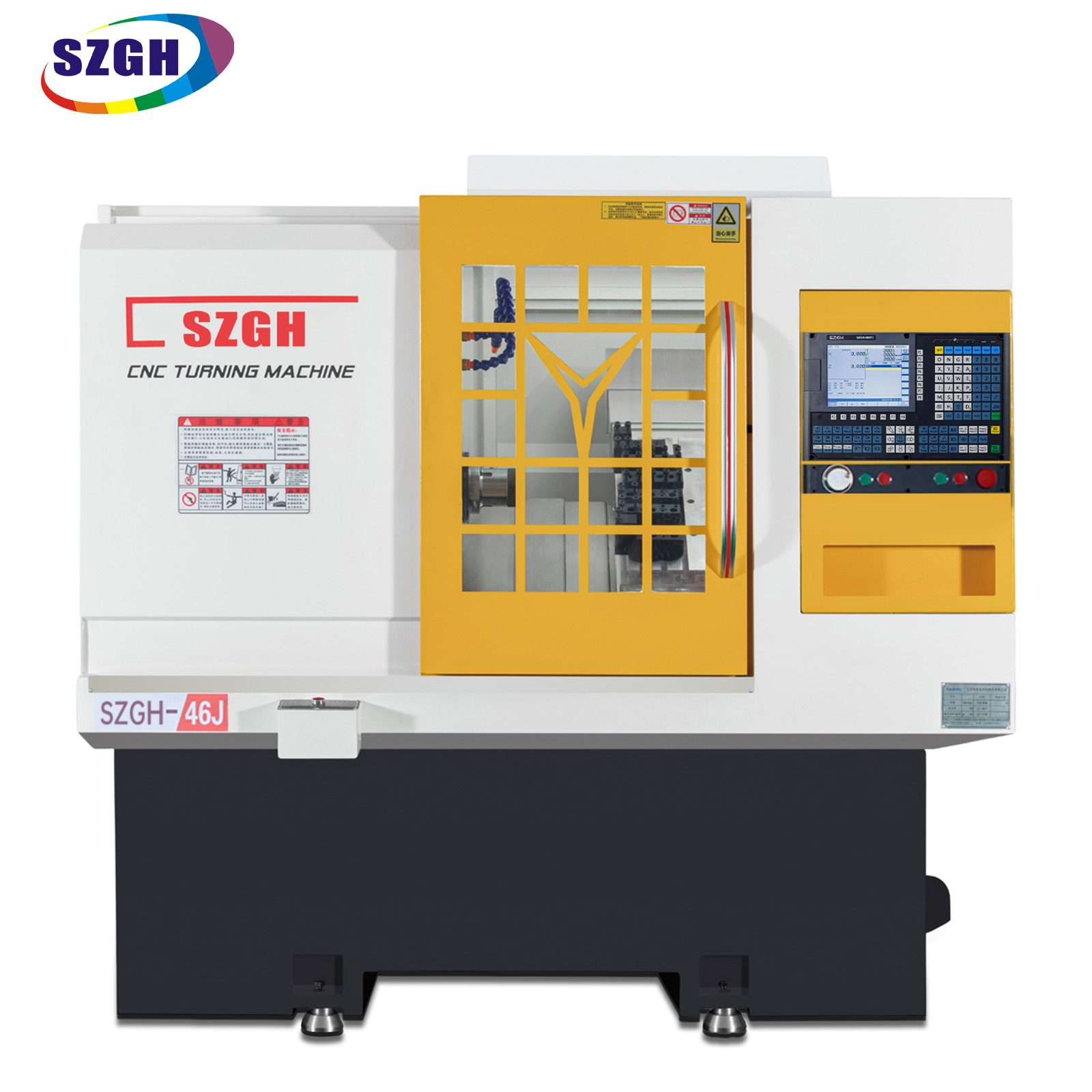

SZGH-46J CNC lathe Machine turning milling machine
Description:
SZGH-46J-CNC lathe machine using multiple patented technologies such as high rigidity and anti-deformation structure,the lathe machine is suitable for processing products with a single-side cutting amount within 4mm, precision tolerance within ±0.0075mm, and smoothness within 1.6. SZGH 46-J CNC lathe machine is widely used in the processing of large parts with high precision and rigidity.
- Model : SZGH-46J
- OEM : (Custom branding and specifications supported)
- Sample: Yes, sample production provided within 10-15 working days
- Payment : 30% deposit, 70% balance before shipment (T/T or L/C accepted)
- Place of Origin: ShenZhen China
- Supply Ability : 100 units/month, scalable based on demand
Hotline
86-19928711953 ( Wechat & WhatsApp )
configuration parameter：
product category | Product Parameter |
| Max. diameter of bar bore | 45 mm |
| Max. particle diameter (disk type) | 400-420mm |
| Cutting amount of stainless steel on one side | 3-4.5mm |
| Machining accuracy of the workpiece | ±0.0075mm |
| X-axis rapid traverse | 25-30m/min |
| X-axis servo-motor power | 1.5KW |
| Max.Spindle Speed | 3500-4000rpm |
| X-axis effective travel | 900mm |
Spindle nose taper | A2-5 |
Support hydraulic chuck size | 8-10inch |
the height of center tool holder | 50mm |
The cnc machine 46 J Dimensions is 2100 x 1500 x 1900mm and the total weight is 2350kg.
The CNC lathe machine 46 J adopting SZGH electric control package to make electromechanical cooperation play the best efficiency.The CNC lathe typically requires a three-phase power input (380-440V, 50/60Hz) for the main motor and spindle drive
